SKU: SF047AR0

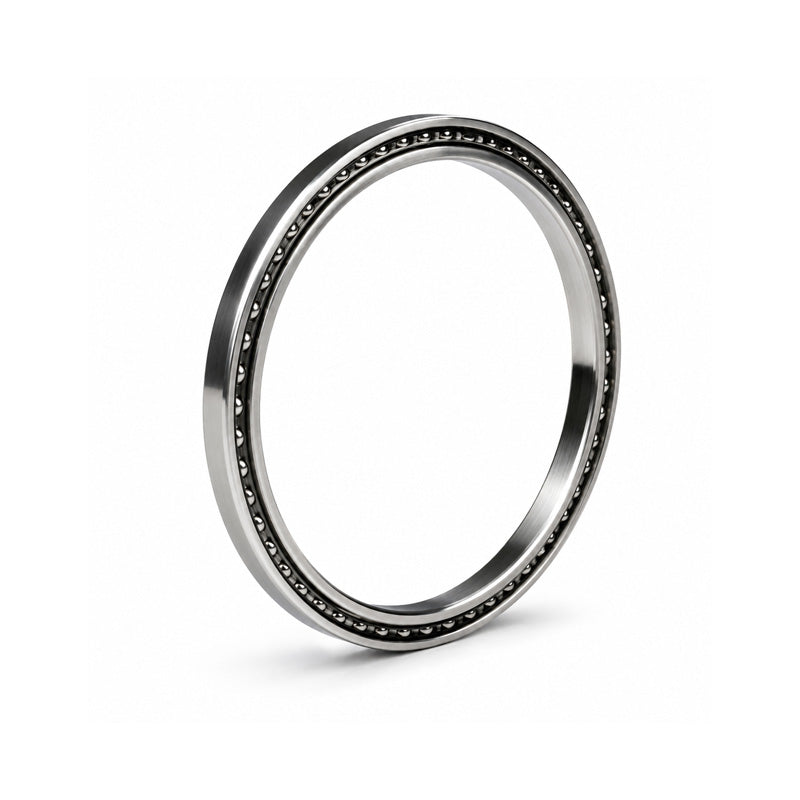

Silverthin SF047AR0 Thin Section Angular Contact Ball Bearing 4.75x6.25x0.75 inch - Allow 7-10 Days
Silverthin SF047AR0 Thin Section Angular Contact Ball Bearing 4.75x6.25x0.75 inch - Allow 7-10 Days
Equivalent to: KF047AR0 L15VA412 CSEF047 NBA12019 FPAF412
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 158.75mm = 6-1/4 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 6.25 inch |
| Width | 0.75 inch |
| L1 | 5.305 inch |
| L2 | 5.695 inch |
| L3 | 5.865 inch |
| Static Radial Load | 32.619 kN |
| Dynamic Radial Load | 14.314 kN |
| Static Thrust Load | 94.151 kN |
| Dynamic Thrust Load | 41.208 kN |
| Weight | 0.9979kg |
