SKU: SE512-610VU-SKF

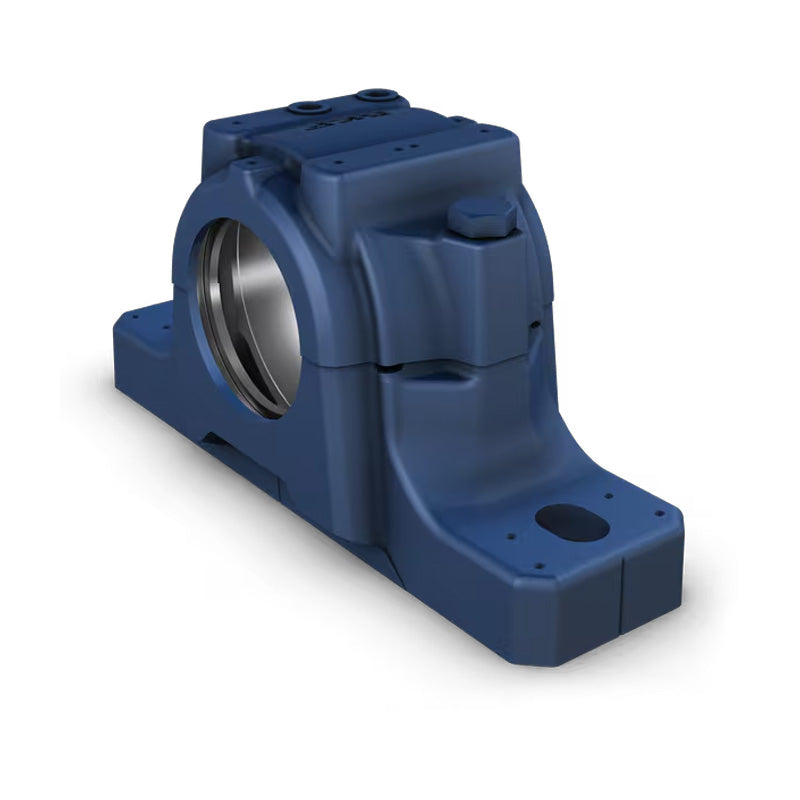

SKF SE512-610VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
SKF SE512-610VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
Regular price
€213,95
ex VAT
Regular price
Sale price
€213,95
ex VAT
Equivalent to: SNL512-610VU
In stock
Price Break
4+
€162,41
9+
€153,29
19+
€151,46
29+
€149,64
39+
€147,81
49+
€145,99
59+
€136,86
69+
€135,04
79+
€133,22
89+
€131,39
99+
€127,74
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 211.14mm = 8.313 (8-5/16) inch
Technical
Technical
| da | 45mm |
|---|---|
| A | 4-1/4 inch = 105mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 4-5/8 inch = 117mm |
| A3 | 6-1/2 inch = 165mm |
| H | 5-1/4 inch = 133mm |
| H1 | 2.756 inch = 70mm |
| H2 | 1-3/16 inch = 30mm |
| J max | 8-7/16 inch = 215mm |
| J min | 8-1/8 inch = 205mm |
| J | 8-5/16 inch = 210mm |
| L | 10-1/16 inch = 255mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 6.15 kg |
