SKU: SD300AR0

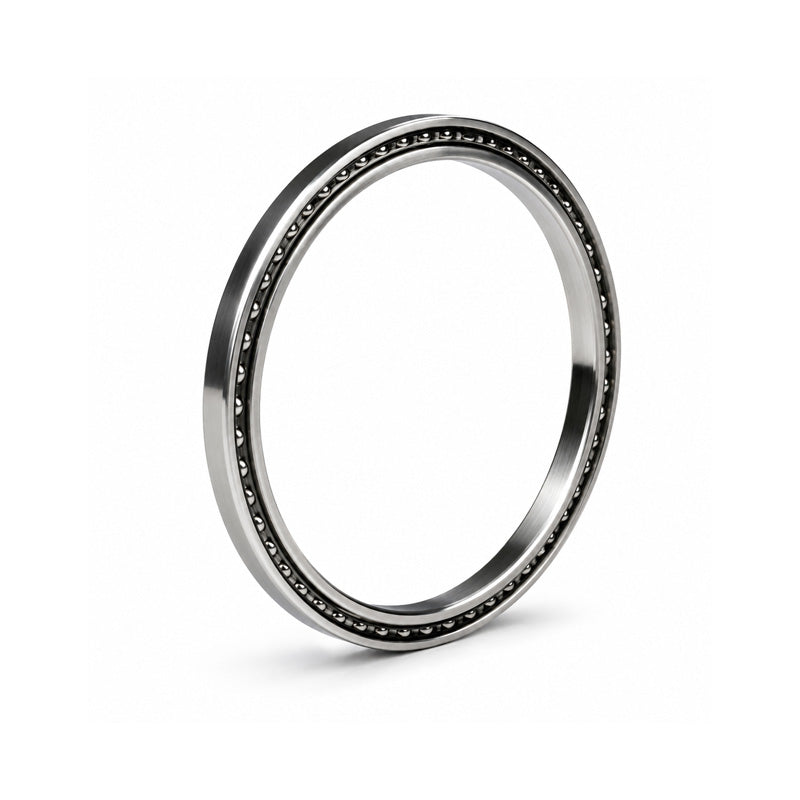

Silverthin SD300AR0 Thin Section Angular Contact Ball Bearing 30x31x0.5 inch - Allow 7-10 Days
Silverthin SD300AR0 Thin Section Angular Contact Ball Bearing 30x31x0.5 inch - Allow 7-10 Days
Equivalent to: KD300AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 762mm = 30 inch
- Outside Diameter:
- 787.4mm = 31 inch
- Width:
- 12.7mm = 1/2 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

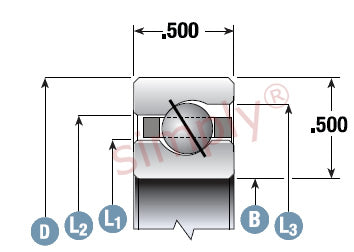

| B | 30 inch |
|---|---|
| D | 31 inch |
| Width | 0.5 inch |
| L1 | 30.37 inch |
| L2 | 30.63 inch |
| L3 | 30.672 inch |
| Static Radial Load | 107.167 kN |
| Dynamic Radial Load | 23.54 kN |
| Static Thrust Load | 309.343 kN |
| Dynamic Thrust Load | 67.884 kN |
| Weight | 2.5991kg |
