SKU: SCHB2.7/8-RHP

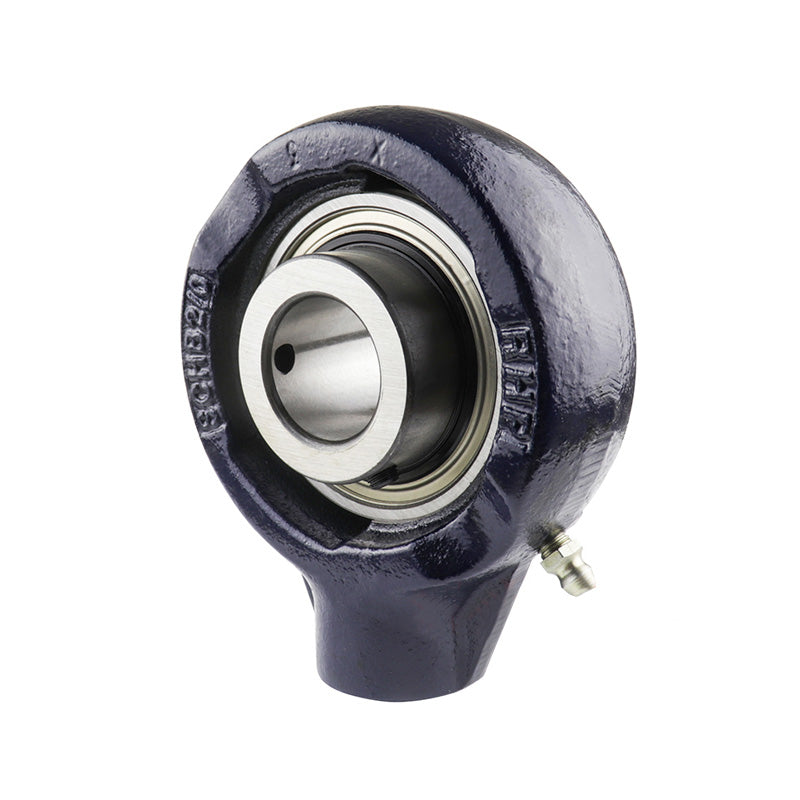

RHP SCH2-7/8 Metric Thread Cast Iron Hanger Bearing Unit and 2-7/8 inch Bore Insert 165mm Outside Diameter

RHP SCH2-7/8 Metric Thread Cast Iron Hanger Bearing Unit and 2-7/8 inch Bore Insert 165mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-7/8 inch
G1 1.26 inch
L 6.496 inch
H 7.898 inch
H1 4.626 inch
Threads M48X5 Metric
A 2.756 inch
A1 1.376 inch
B 3.062 inch
s 1.314 inch
d1 3.622 inch
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 6.8 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
