SKU: SCH70-RHP

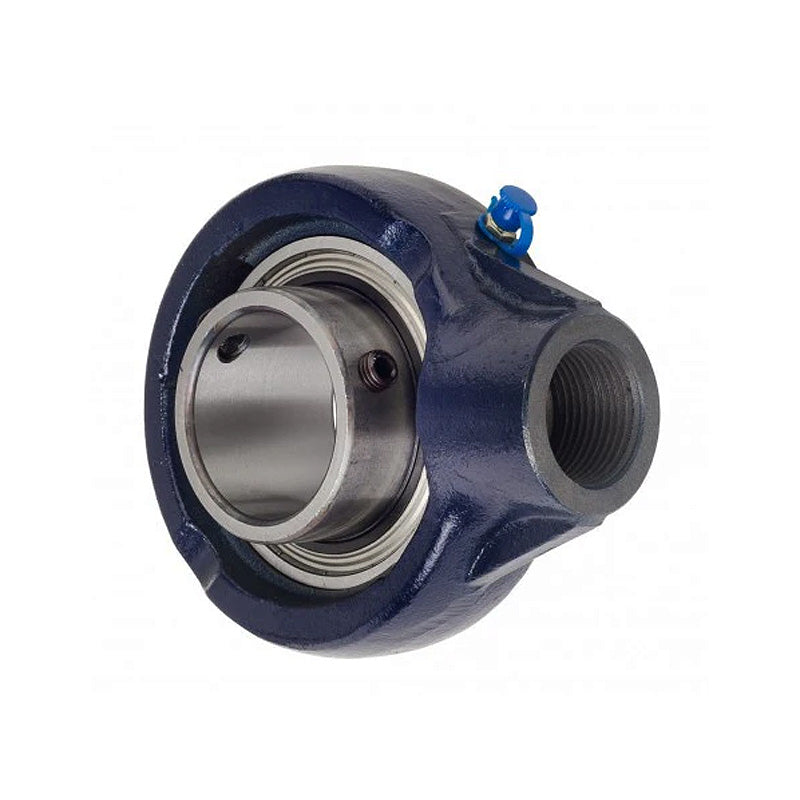

RHP SCH70 Metric Thread Cast Iron Hanger Bearing Unit and 70mm Bore Insert 165mm Outside Diameter

RHP SCH70 Metric Thread Cast Iron Hanger Bearing Unit and 70mm Bore Insert 165mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 70mm
G1 32mm
L 165mm
H 200.6mm
H1 117.5mm
Threads M48X5 Metric
A 70mm
A1 34.94mm
B 77.77mm
s 33.37mm
d1 92mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 6.8 kg
Insert <a href="advanced_search_result.php?keywords=1075-70G+insonly">1075-70G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
