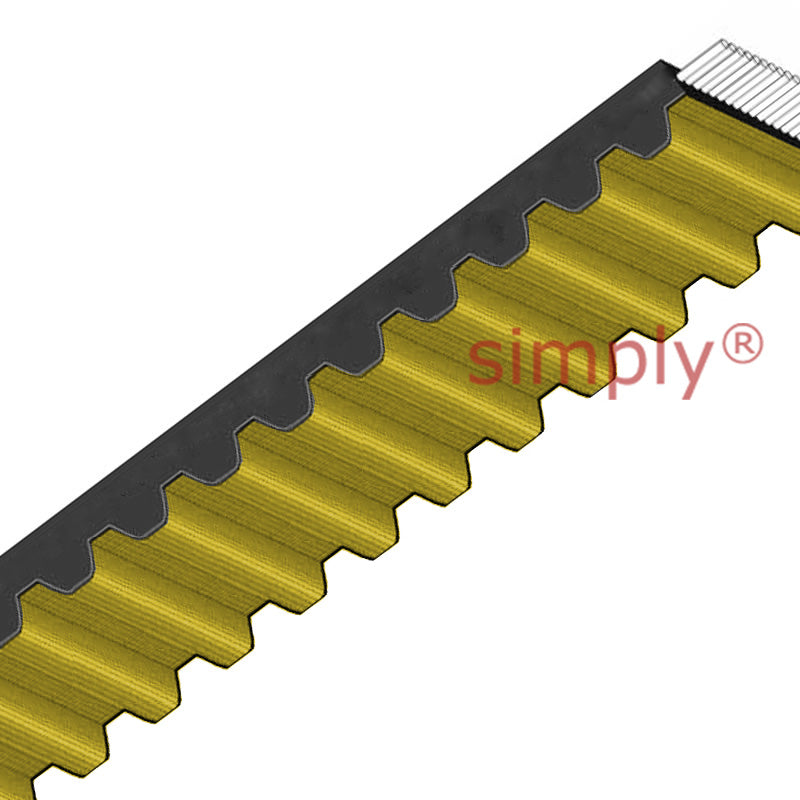

• ContiTech SCC14M3850X90 Synchrochain Carbon Timing Belt 90mm Width 3850mm Length 275 Teeth
1 1

SKU: SCC14M3850X90

ContiTech SCC14M3850X90 Synchrochain Carbon Timing Belt 90mm Width 3850mm Length 275 Teeth

ContiTech SCC14M3850X90 Synchrochain Carbon Timing Belt 90mm Width 3850mm Length 275 Teeth
€2.374,95 ex VAT
€2.374,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €1.804,34
5+ €1.702,97
9+ €1.682,70
19+ €1.662,42
49+ €1.642,15
74+ €1.621,88
99+ €1.520,51
199+ €1.500,24
249+ €1.479,96
499+ €1.459,69
999+ €1.419,14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
B8HVXKIRPM
Brand / Quality:
ContiTech - High Quality
Belt Width Approx:
90mm
Belt Depth Approx:
10mm
Belt Length Approx:
3850mm
Number of Teeth:
275
Technical
Number of Teeth 275
Belt Length 3850mm
Belt Width 90mm
Tooth Pitch t 14mm
Belt Depth B1 10mm
Belt Depth B2 6.1mm
Temperature Range -40 to 80 Deg C
Dynamic Stressing Range Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications 24500 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) 31750 N
Weight Kg 2.706 kg
