SKU: SCC14M2520X125

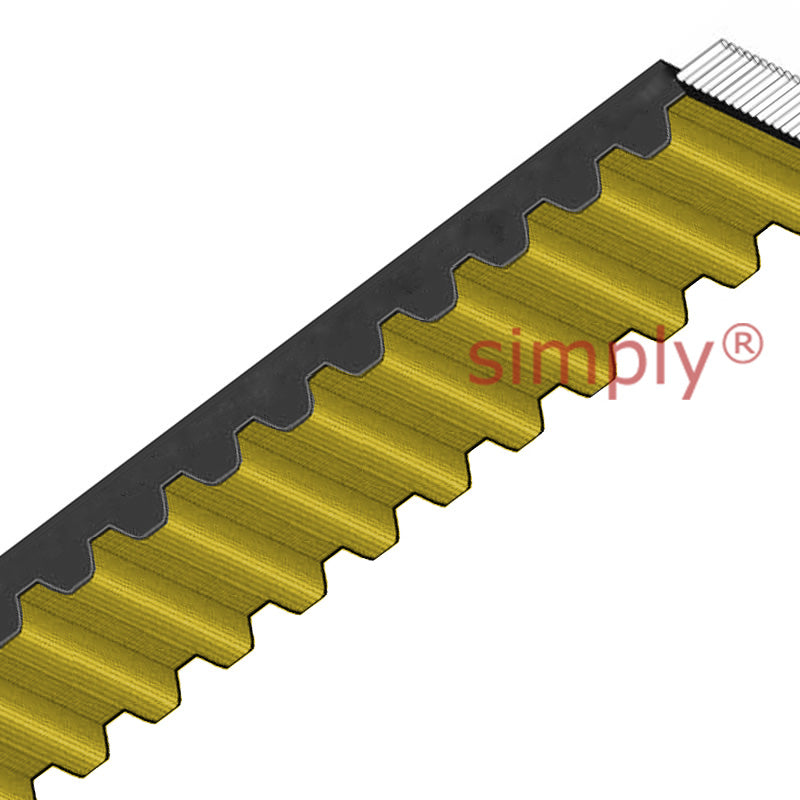

ContiTech SCC14M2520X125 Synchrochain Carbon Timing Belt 125mm Width 2520mm Length 180 Teeth

Name: ContiTech SCC14M2520X125 Synchrochain Carbon Timing Belt 125mm Width 2520mm Length 180 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SCC14M2520X125
Price: 2287.95 EUR
Availability: InStock

€2.287,95 ex VAT

Sale Sold out

In stock

Price Break

3+ €1.738,01

5+ €1.640,37

9+ €1.620,84

19+ €1.601,31

49+ €1.581,78

74+ €1.562,25

99+ €1.464,61

199+ €1.445,09

249+ €1.425,56

499+ €1.406,03

999+ €1.366,97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

B8HVXKIRPM

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 125mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 2520mm
Number of Teeth:: 180

Technical

Number of Teeth	180
Belt Length	2520mm
Belt Width	125mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	33600 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	44000 N
Weight Kg	2.46 kg
