SKU: SC300AR0

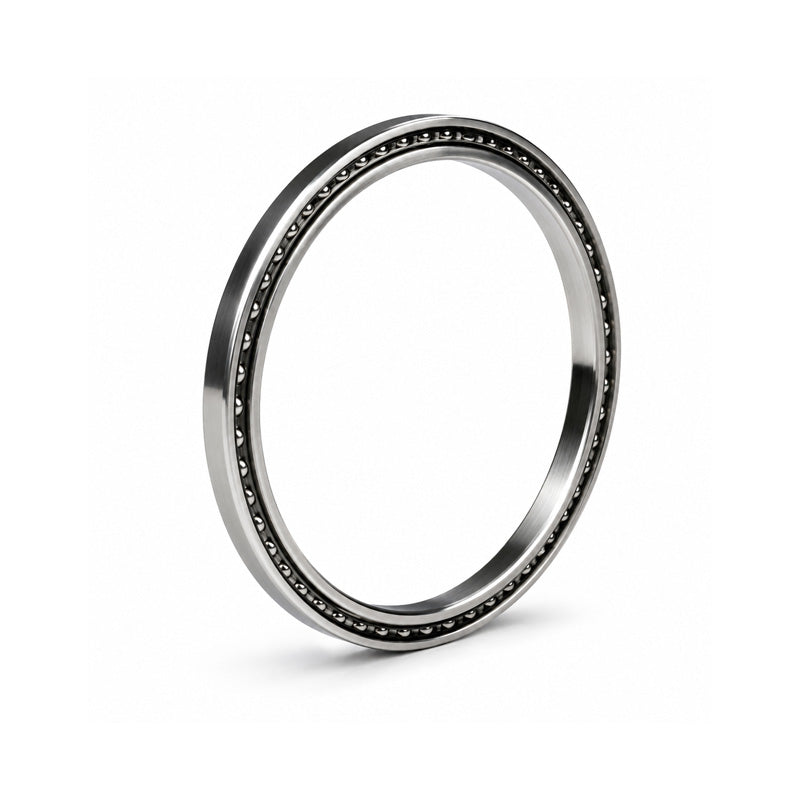

Silverthin SC300AR0 Thin Section Angular Contact Ball Bearing 30x30.75x0.375 inch - Allow 7-10 Days
Silverthin SC300AR0 Thin Section Angular Contact Ball Bearing 30x30.75x0.375 inch - Allow 7-10 Days
Equivalent to: KC300AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 762mm = 30 inch
- Outside Diameter:
- 781.05mm = 30-3/4 inch
- Width:
- 9.53mm = 3/8 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 30 inch |
|---|---|
| D | 30.75 inch |
| Width | 0.375 inch |
| L1 | 30.277 inch |
| L2 | 30.473 inch |
| L3 | 30.484 inch |
| Static Radial Load | 79.899 kN |
| Dynamic Radial Load | 15.671 kN |
| Static Thrust Load | 230.645 kN |
| Dynamic Thrust Load | 45.198 kN |
| Weight | 1.456kg |
