SKU: SBFW207-23

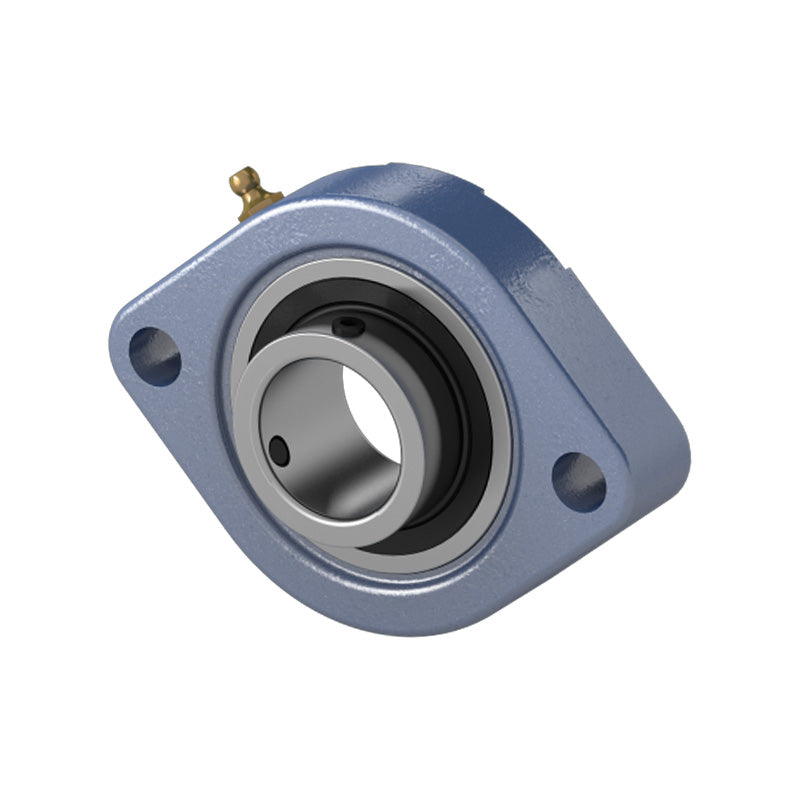

SBFW207-23 Imperial Two Bolt Cast Iron Oval Housing with 1-7/16 inch Bore
SBFW207-23 Imperial Two Bolt Cast Iron Oval Housing with 1-7/16 inch Bore
Out of stock
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| a | 126mm |
| e | 100mm |
| b | 94mm |
| i | 12.5mm |
| s | 11.5mm |
| l | 22mm |
| Bolt | M10 |
| z | 36mm |
| B | 32mm |
| n | 8.5mm |
| Weight | 0.9 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
