SKU: SALKB12F-SKF

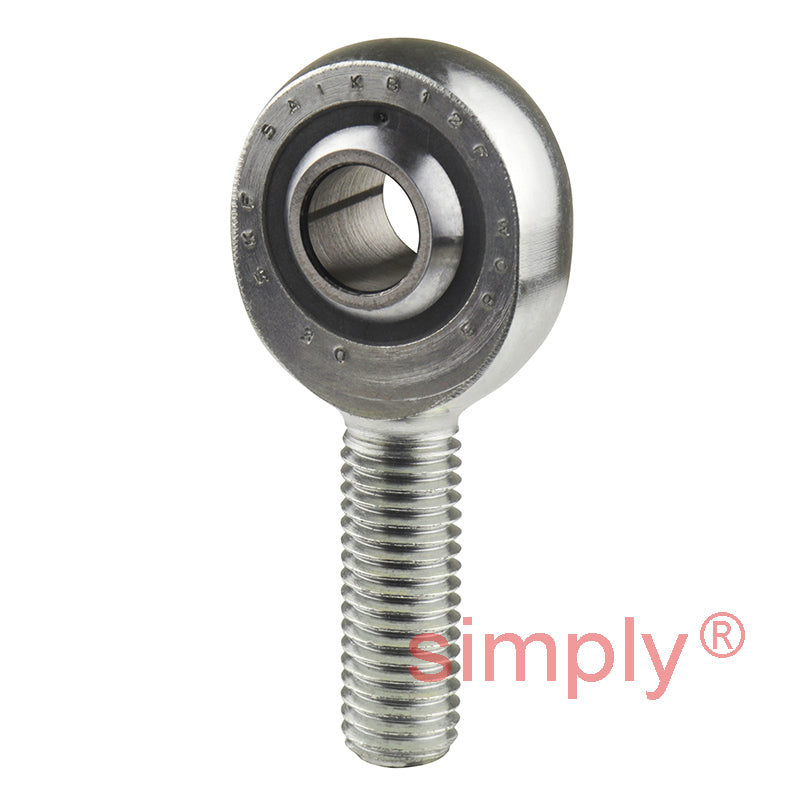

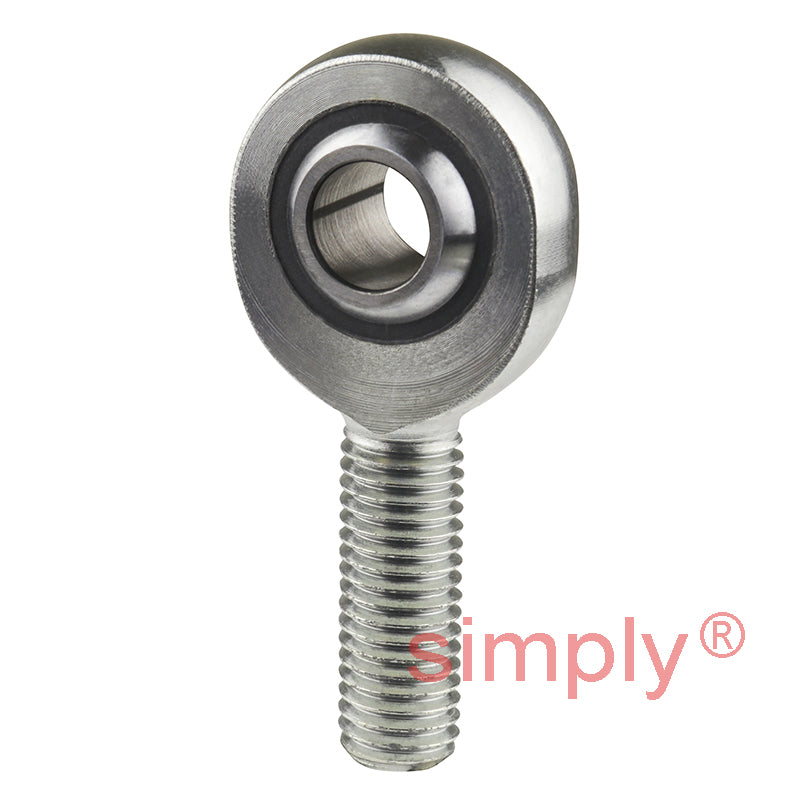

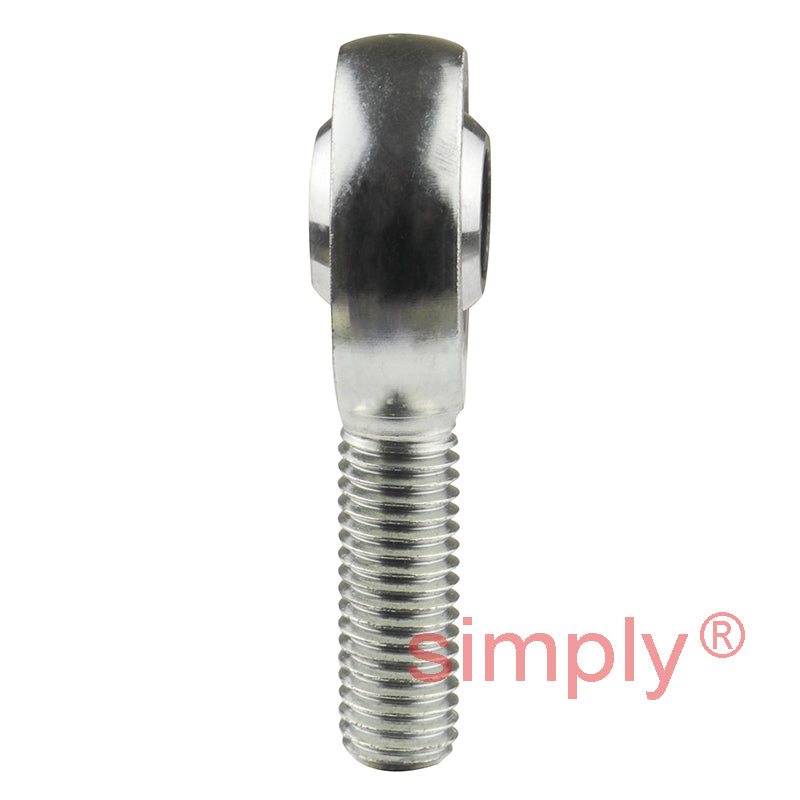

SKF SALKB12F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
SKF SALKB12F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
Regular price
€40,95
ex VAT
Regular price
Sale price
€40,95
ex VAT
Equivalent to: MSL-M12
In stock
Price Break
10+
€30,48
19+
€28,77
29+
€28,43
39+
€28,09
49+
€27,74
74+
€27,40
99+
€25,69
199+
€25,35
249+
€25,00
499+
€24,66
999+
€23,98
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 33mm |
| G | M12 |
| B | 16mm |
| C1 max | 12mm |
| h | 54mm |
| a | 13deg |
| Dynamic load C | 13.2 kN |
| Static load Co | 15 kN |
| Weight | 0.1 kg |
| dk | 22.2mm |
| l1 min | 32mm |
| l2 max | 72mm |
| r1 min | 0.3mm |
