SKU: SALA45TXE-2LS-SKF

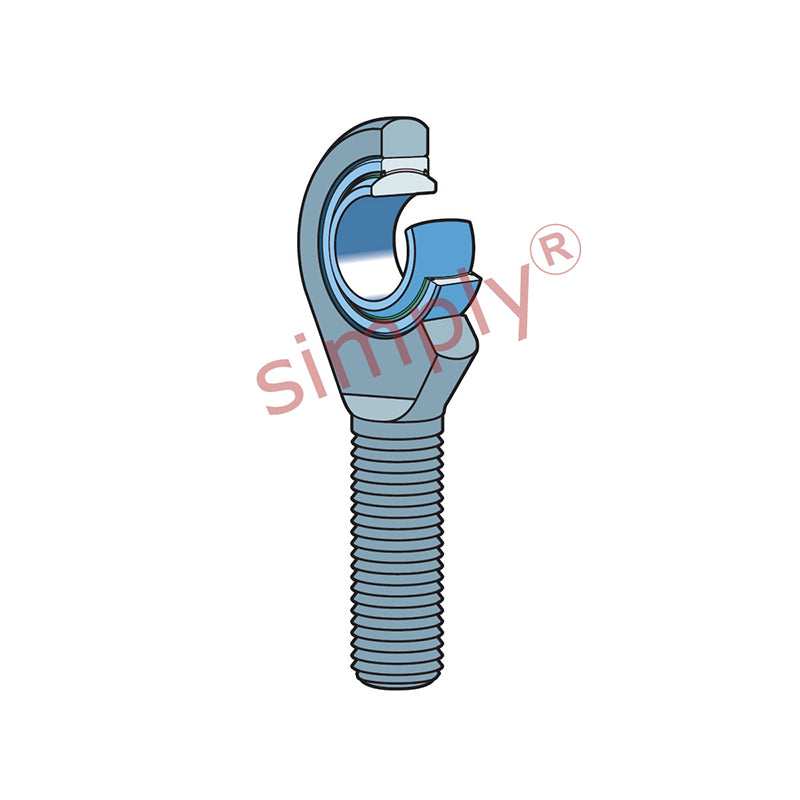

SKF SALA45TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M42x3 Thread
SKF SALA45TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M42x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M42x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 45mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 45mm |
|---|---|
| d2 max | 104mm |
| G | M42x3 |
| B | 32mm |
| C1 max | 28mm |
| h | 163mm |
| a | 7deg |
| Dynamic load C | 360 kN |
| Static load Co | 200 kN |
| Weight | 2.45 kg |
| dk | 60mm |
| l1 min | 92mm |
| l2 max | 217mm |
| l7 min | 50mm |
| r1 min | 0.6mm |
