SKU: SAFS22218-11-SKF

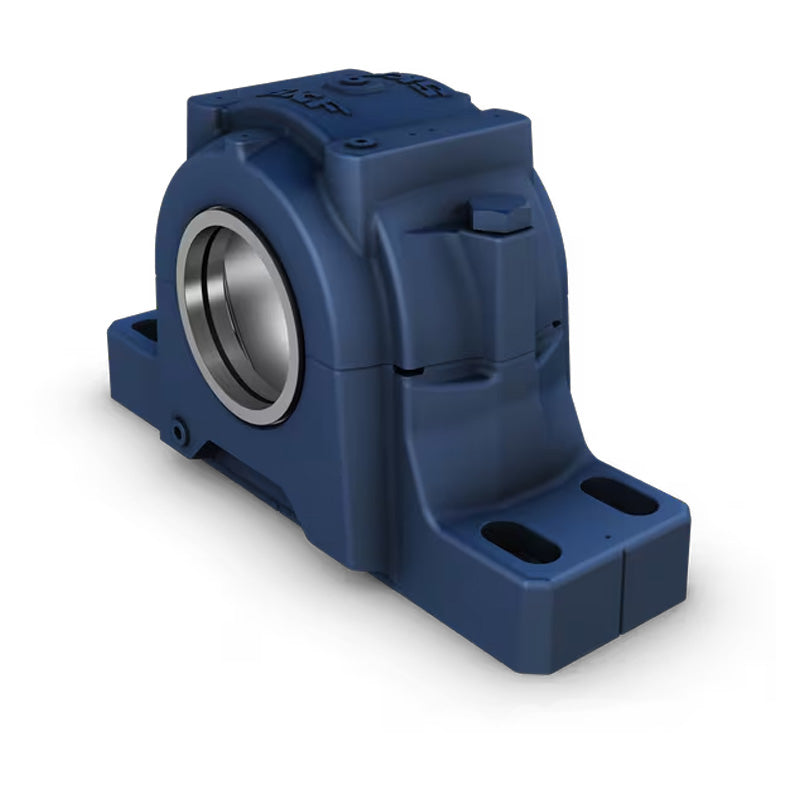

SKF SAFS22218-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SAFS22218-11 Cast Steel Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 104.78mm = 4.125 (4-1/8) inch
Technical
Technical
| Housing | SAFS218-11 |
|---|---|
| Triple seal ring for shaft diameter da | LOR112 |
| Triple seal ring for shaft dia db | LOR191 |
| Bearing | 22218E |
| Lock nut | AN18 |
| Lock washer | W18 |
| Fixing rings | 1 x SR18-15 |
| End cover | EPR11 |
| da | 4-1/8 inch |
| db | 3-3/8 inch |
| A1 | 3-7/8 inch = 98.4mm |
| A2 | 5-3/4 inch = 146.1mm |
| A3 | 8-3/8 inch = 212.7mm |
| H | 7-9/16 inch = 192.1mm |
| H1 | 4 inch = 101.6mm |
| H2 | 1-5/8 inch = 41.3mm |
| Static oil level H3 Roller bearing | 1-1/2 inch = 38.1mm |
| Static oil level H3 Ball bearing | 1-1/2 inch = 38.1mm |
| J max | 11-3/4 inch = 298.5mm |
| J min | 10-1/4 inch = 260.4mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13-3/4 inch = 349.3mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 21.8 kg |
