SKU: SAFDC3532/140-SKF

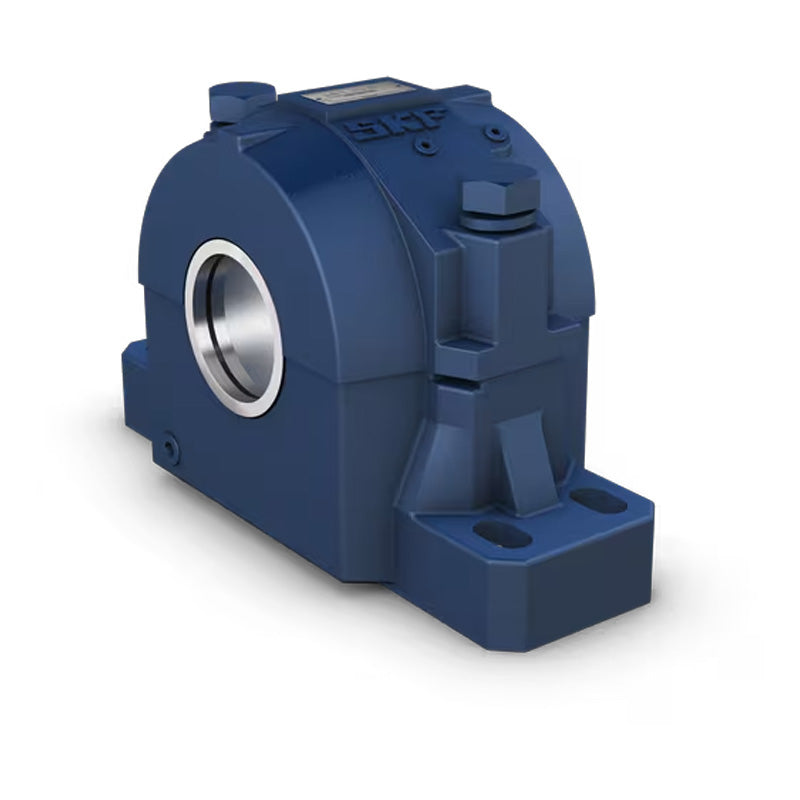

SKF SAFDC3532/140 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFDC3532/140 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Share this product
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
Technical
Technical
| Housing | SAFD532 |
|---|---|
| Triple Ring Seal | LOR595 |
| Bearing | C3232K |
| Adaptor Sleeve | H2332L |
| Fixing Rings (2 required) | FRB5/290 |
| da | 140mm |
| A | 216mm = 8-1/2 inch |
| A1 | 159mm = 6-1/4 inch |
| A2 | 222mm = 8-3/4 inch |
| A3 | 299mm = 11-3/4 inch |
| H | 338mm = 13-5/16 inch |
| H1 | 169.86mm = 6-11/16 inch |
| H2 | 67mm = 2-5/8 inch |
| H3 | 52mm = 2-1/16 inch |
| L | 559mm = 22 inch |
| J max | 489mm = 19-1/4 inch |
| J min | 441mm = 17-3/8 inch |
| J1 | 95mm = 3-3/4 inch |
| Bolts (required) | (4) 24mm = 1 inch |
| End plug | EPR16 |
| Weight | 120 kg |
