SKU: SAF22538/6-15/16-SKF

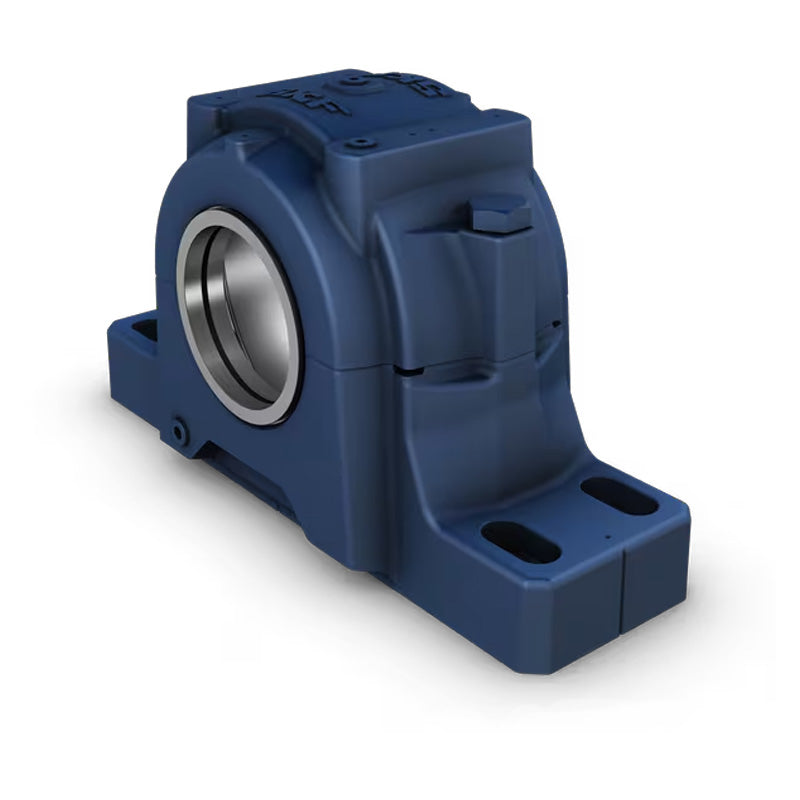

SKF SAF22538/6-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22538/6-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 176.21mm = 6.937 (6-15/16) inch
Technical
Technical
| Housing | SAF538 |
|---|---|
| Triple Ring Seal | LOR155 |
| Taconite Seal | TER155 |
| Bearing | 22238CCK/W33 |
| Adaptor Sleeve | HA3138 |
| Fixing Rings | 1 x SR38-32 |
| End Cover | EPR20 |
| da | 6-15/16 inch |
| A1 | 7-1/2 inch = 190.5mm |
| A2 | 10-3/4 inch = 273.1mm |
| A3 | 13-3/8 inch = 339.7mm |
| H | 15-11/16 inch = 398.5mm |
| H1 | 7-7/8 inch = 200.03mm |
| H2 | 3-1/8 inch = 79.4mm |
| Static oil level H3 | 2-7/16 inch = 61.9mm |
| J max | 24-3/8 inch = 619.1mm |
| J min | 21-5/8 inch = 549.3mm |
| J1 | 4-1/2 inch = 114.3mm |
| L | 28 inch = 711.2mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1-1/4 inch = 30mm |
| Weight | 181.4 kg |
