SKU: SA.212-38

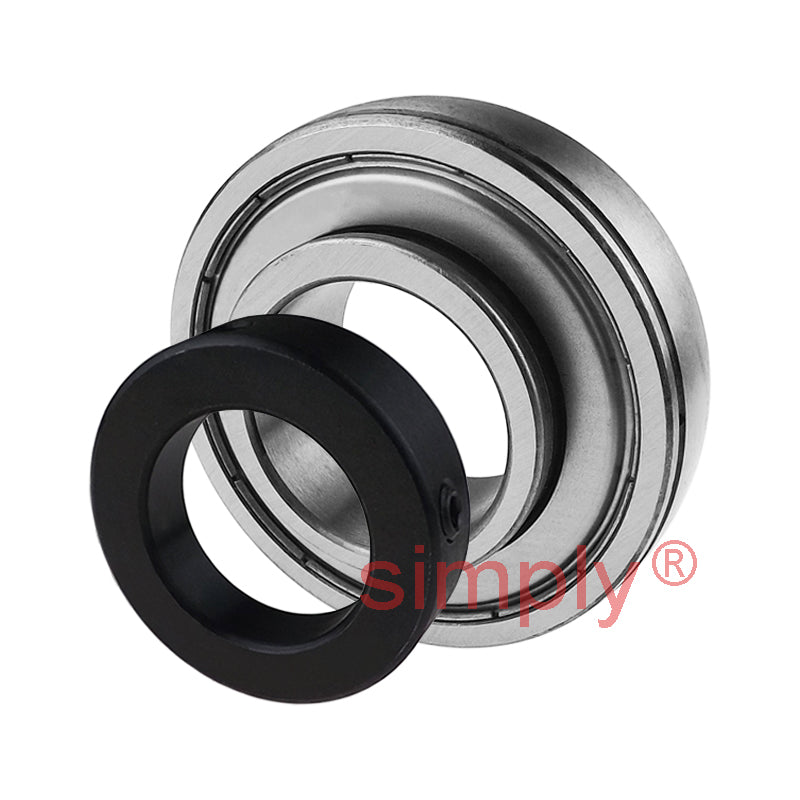

SA212-38 Imperial Bearing Insert with Locking Collar 2-3/8 inch Bore 110mm Outside Dia
SA212-38 Imperial Bearing Insert with Locking Collar 2-3/8 inch Bore 110mm Outside Dia
Out of stock
Share this product
Description
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Outside Diameter:
- 110mm
- Style:
- SA
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| Be | 24mm |
| D | 110mm |
| z | 33.4mm |
| n | 12mm |
| m | 21.4mm |
| Bi | 53.1mm |
| k | 84.2mm |
| H | 22.3mm |
| G | 8mm |
| h | 8mm |
| Grub screw | 3/8"-24UNF |
| Weight | 1.3 kg |
| Dynamic load | 4850 kgf |
| Static load | 2960 kgf |
