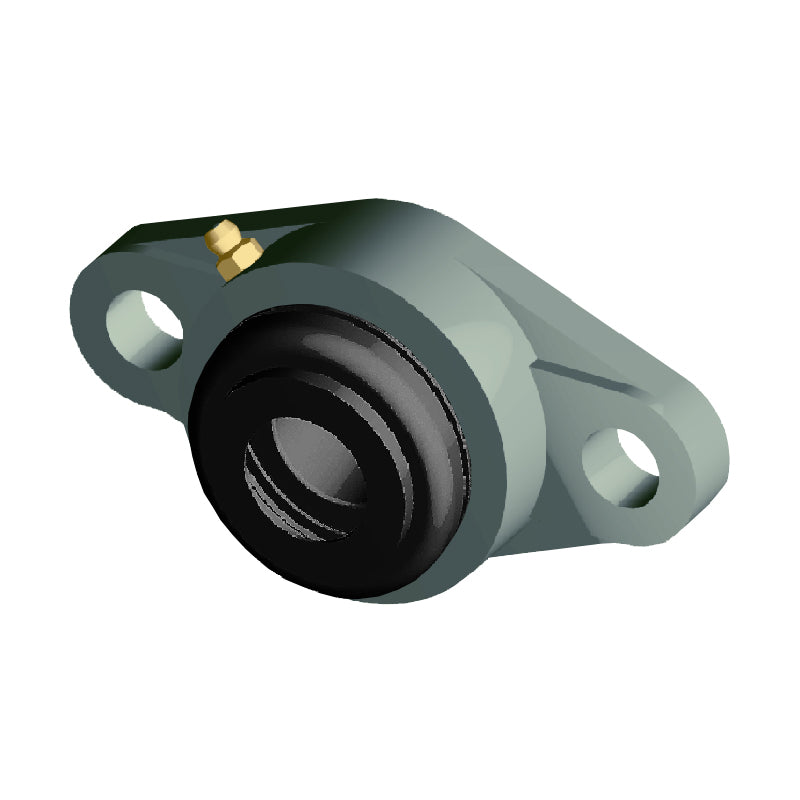

NTN S-UCFLX07D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFLX07D1 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| H | 171mm |
| J | 144mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 16mm |
| A | 38mm |
| N | 16mm |
| L | 105mm |
| B | 49.2mm |
| S | 19mm |
| A<sub>4</sub> | 62mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 1.9 kg |
