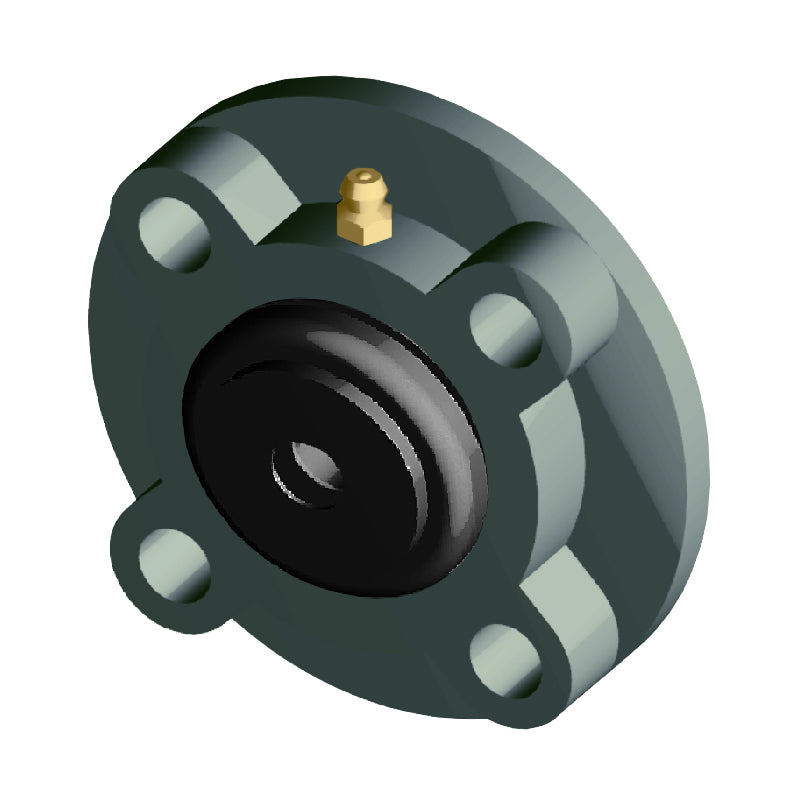

• NTN S-UCFC205D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
  • NTN
1 2

SKU: S-UCFC205D1-NTN

NTN S-UCFC205D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFC205D1 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
€36,95 ex VAT
€36,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,49
4+ €25,95
9+ €25,64
19+ €25,33
49+ €25,02
99+ €24,71
499+ €23,17
999+ €22,86
1999+ €22,55
2999+ €22,24
4999+ €21,62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Style:
UCFC
Pitch Circle Diameter:
63.6mm
Technical

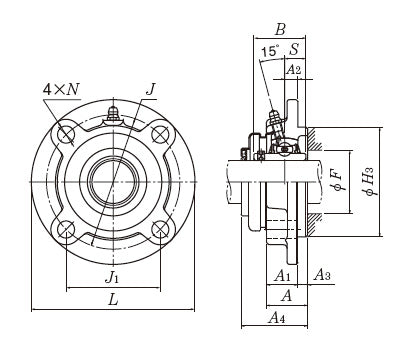

--- Dimensions
Shaft diameter 25mm
L 115mm
J 90mm
(J<sub>1</sub>) 63.6mm
A<sub>2</sub> 10mm
N 12mm
A<sub>3</sub> 6mm
A<sub>1</sub> 21mm
A 27mm
H<sub>3</sub> 70mm
B 34.1mm
S 14.3mm
A<sub>4</sub> 44.5mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 15.5 kN
Static load C<sub>0r</sub> 7.85 kN
Fatigue load limit C<sub>u</sub> 0.55 kN
--- Unit information
Mass 1 kg
