SKU: S-UCFC201-008D1-NTN

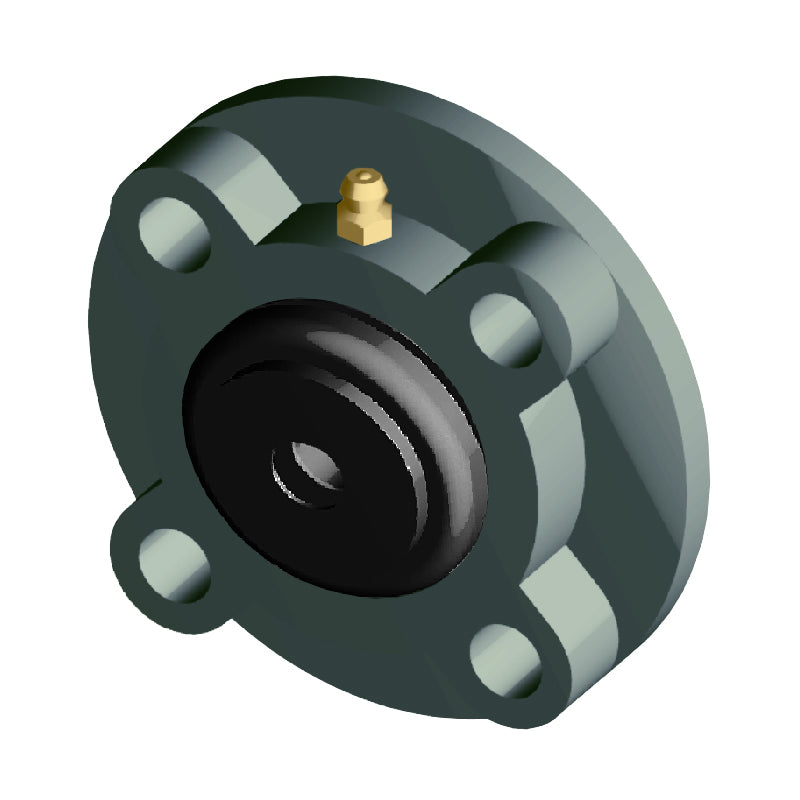

NTN S-UCFC201-008D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 1/2 inch Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFC201-008D1 Imperial Four Bolt Cast Iron Round Flanged Housing with 1/2 inch Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 2-11/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1/2 inch |
| L | 3-15/16 inch |
| J | 3-5/64 inch |
| (J<sub>1</sub>) | 2-11/64 inch |
| A<sub>2</sub> | 25/64 inch |
| N | 15/32 inch |
| A<sub>3</sub> | 13/64 inch |
| A<sub>1</sub> | 13/16 inch |
| A | 1 inch |
| H<sub>3</sub> | 2.4409 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| A<sub>4</sub> | 1-19/32 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 1.8 lbs |
