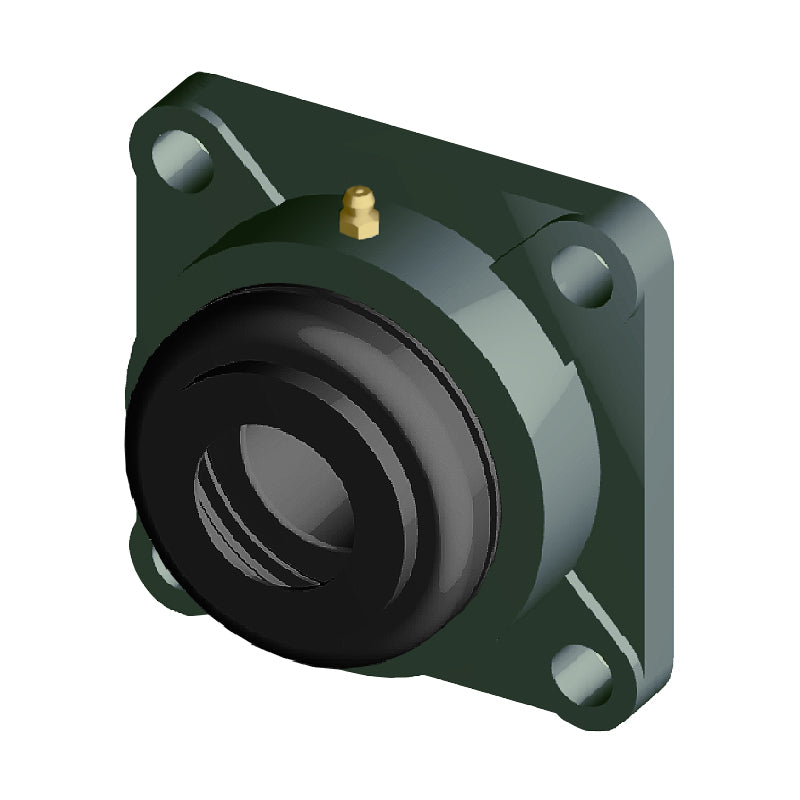

• NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCF209D1-NTN

NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
€58,95 ex VAT
€58,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €44,18
4+ €41,70
9+ €41,20
19+ €40,70
49+ €40,21
99+ €39,71
499+ €37,23
999+ €36,73
1999+ €36,24
2999+ €35,74
4999+ €34,75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCF
Bolt Hole Centres:
105mm
Technical

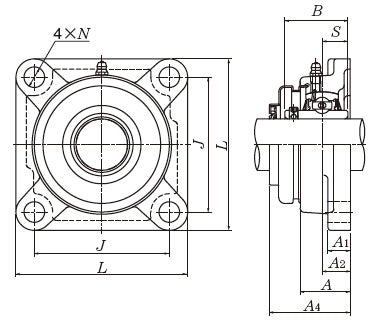

--- Dimensions
Shaft diameter 45mm
L 137mm
J 105mm
A<sub>2</sub> 22mm
A<sub>1</sub> 16mm
A 38mm
N 16mm
B 49.2mm
S 19mm
A<sub>4</sub> 63mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.2 kg
