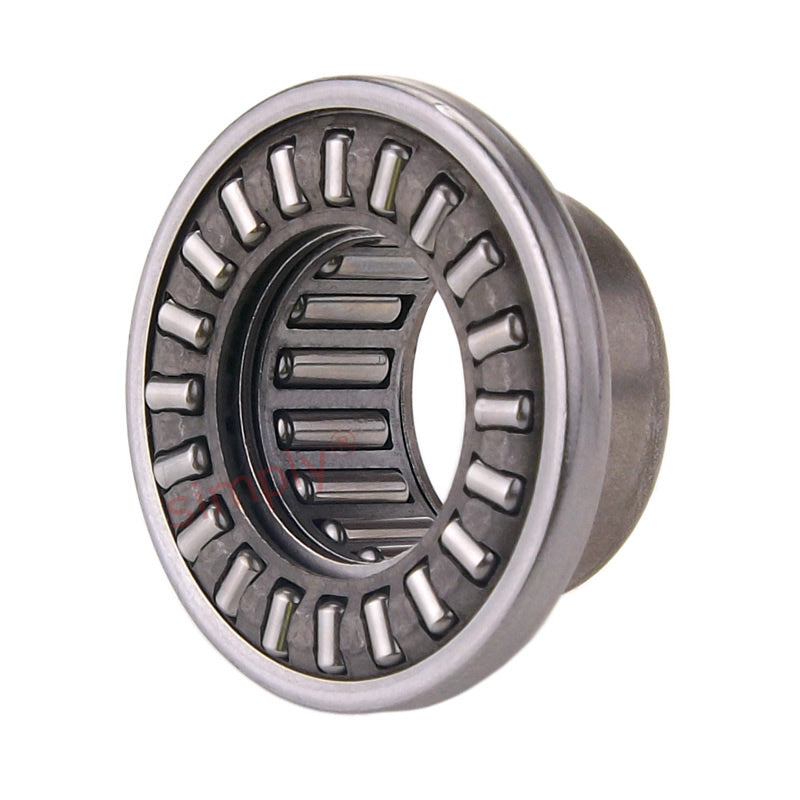

Major Brand RAX 740 Open Needle Thrust Bearing 40x48x22.2mm Allow 2-3 Days
Major Brand RAX 740 Open Needle Thrust Bearing 40x48x22.2mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Nadella Combined Needle Roller Bearings : Combined bearings type RAX possess a one piece outer ring formed from thin sheet steel accurately controlled and hardened by suitable heat treatment. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 48mm
- Width:
- 22.2mm

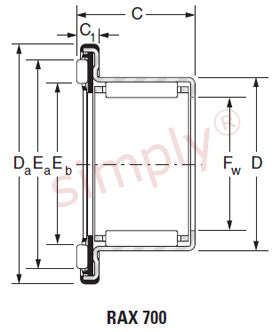

Technical
Technical
| Fw | 40mm |
|---|---|
| D | 48mm |
| C | 22.2mm |
| Da | 61.5mm |
| Eb | 43mm |
| Ea | 54.9mm |
| C1 | 4.2mm |
| L | 21.2 |
| Radial dynamic load | 26.2 |
| Radial static load | 51 kN |
| Axial dynamic load | 20.4 kN |
| Axial static load | 96 kN |
| Limit loads radial | 16 kN |
| Limit loads axial | 30 kN |
| Speed rating | 5000 rpm |
| Housing | 48mm |
| GO plug-gauges | 40.015mm |
| NO-GO plug-gauges | 40.041mm |
| Inner ring | JR 35x40x20.5 |
| Weight | 0.086 kg |
