SKU: RAX540-MB

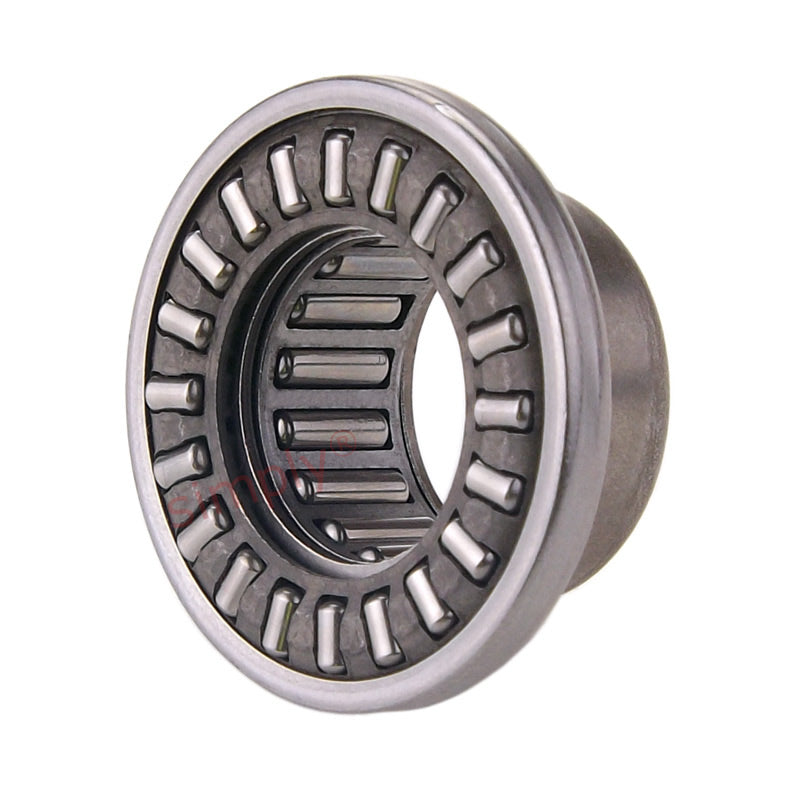

Major Brand RAX 540 Needle Combined Bearing with Needle Thrust Cage 40x52x28mm Allow 2-3 Days
Major Brand RAX 540 Needle Combined Bearing with Needle Thrust Cage 40x52x28mm Allow 2-3 Days
Out of stock
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 28mm
- Width:
- 52mm
Technical
Technical
| Fw | 40mm |
|---|---|
| C | 28mm |
| D | 52mm |
| Da | 60.4mm |
| Eb | 54.8mm |
| Ea | 42.8mm |
| C1 | 10mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 23.8 kN |
| Radial static load | 47 kN |
| Axial dynamic load | 46 kN |
| Axial static load | 129 kN |
| Speed rating | 5000 rpm |
| Inner ring | JR 35x40x20 kN |
| Weight | 0.174 kg |
