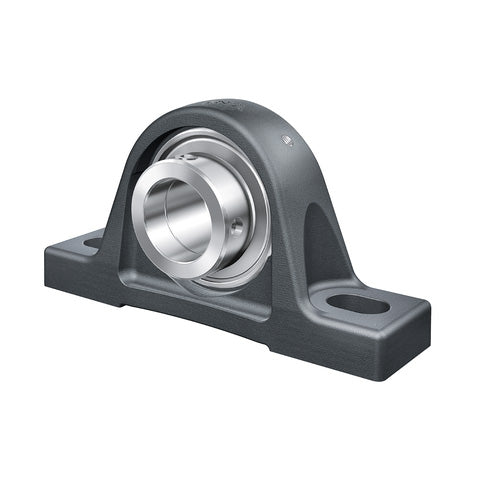

INA RASE1-1/2 Cast Iron Plummer Block Housing with Eccentric Collar Insert 1-1/2 inch Bore
INA RASE1-1/2 Cast Iron Plummer Block Housing with Eccentric Collar Insert 1-1/2 inch Bore
Out of stock
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- RASE
- Bolt Hole Centres:
- 135.99mm = 5.354 inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| d | 38.1mm |
| L | 7.146 inch |
| L | 181.5mm |
| H2 | 3.937 inch |
| H2 | 100mm |
| A | 1.969 inch |
| A1 | 1.299 inch |
| B1 | 2.224 inch |
| d3 max | 2.283 inch |
| H | 1.937 inch |
| H1 | 0.787 inch |
| J | 5.354 inch |
| N | 0.591 inch |
| N1 | 0.433 inch |
| Q | 1/8 NPT |
| S1 | 1.382 inch |
| Mass | 4.82 lbs |
| Basic dynamic load rating Cr | 7300 lbf |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 4450 lbf |
| Basic static load rating Cor | 19800 N |
| Designation of housing | GG.ASE08 |
| Designation of bearing | G1108-KRR-B-AS2/V |
