SKU: RALE25-NPP-INA

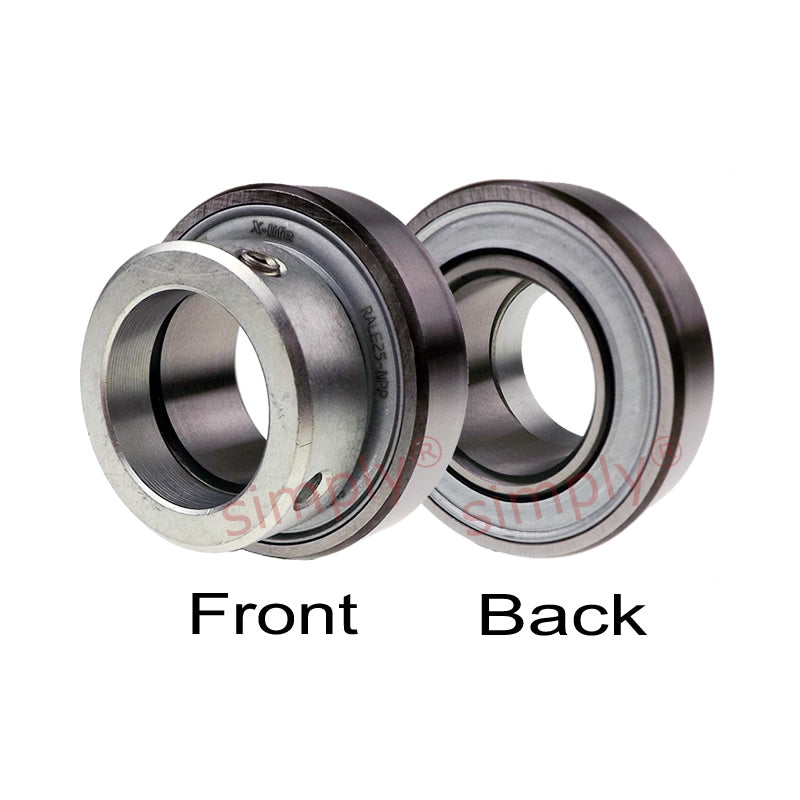

INA RALE25XLNPP Metric Parallel Outer Bearing Insert with P Seals 25x47x25.5mm
INA RALE25XLNPP Metric Parallel Outer Bearing Insert with P Seals 25x47x25.5mm
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
3+
€19,17
5+
€18,09
10+
€17,88
15+
€17,66
20+
€17,45
30+
€17,23
40+
€16,16
50+
€15,94
60+
€15,72
75+
€15,51
100+
€15,08
Quantity
Couldn't load pickup availability
Description
Description
| INA RALE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 25.5mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B1 | 25.5mm |
| B | 17.5mm |
| C | 12mm |
| d2 | 30mm |
| d3 max | 36mm |
| S | 6mm |
| W | 2.5mm |
| Dynamic load Cr | 10100 N |
| Static load C0r | 5900 N |
| Weight | 0.13 kg |
