SKU: PUMP-SET-700-0.9-SNR
SNR Hydraulic Pump Kit 0.9L 700 bar with Accessories - Allow 2-3 Days
SNR Hydraulic Pump Kit 0.9L 700 bar with Accessories - Allow 2-3 Days
Out of stock
Description
Description

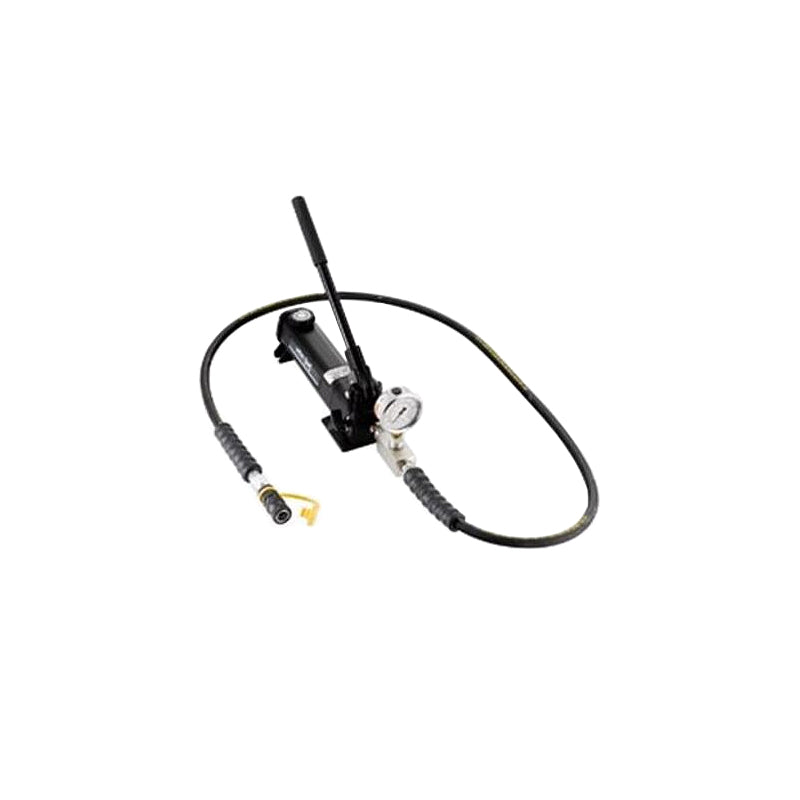

SNR Hydraulic Pump Kit (700 bar): This hydraulic pump kit is ergonomic, rugged, effective, practical, and safe. Included in this kit is the following; a pump, pressure gauge, pressure gauge mount, high-pressure hose, and a female connector. This connector can be used on the SNR Hydraulic Nuts which are available separately.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Operating Pressure | 700 bar |
|---|---|
| Tank Capacity | 900cm3 |
| Included Components | x1 Hydraulic Pump (700 bar), x1 Pressure Gauge (700 bar), x1 Hydraulic Hose (3000mm), x1 0.9 Litre Gauge Adaptor, x1 Coupling Connector (1500 bar) |

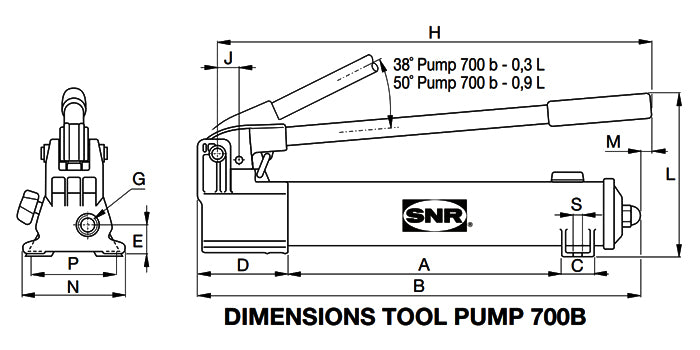

| A | 344mm |
| B | 533mm |
| C | 36mm |
| D | 99mm |
| E | 33mm |
| G | 3/8 inch - 18 NPTF |
| H | 522mm |
| J | 30mm |
| L | 177mm |
| M | 16mm |
| N | 120mm |
| Weight | 4.1kg |
