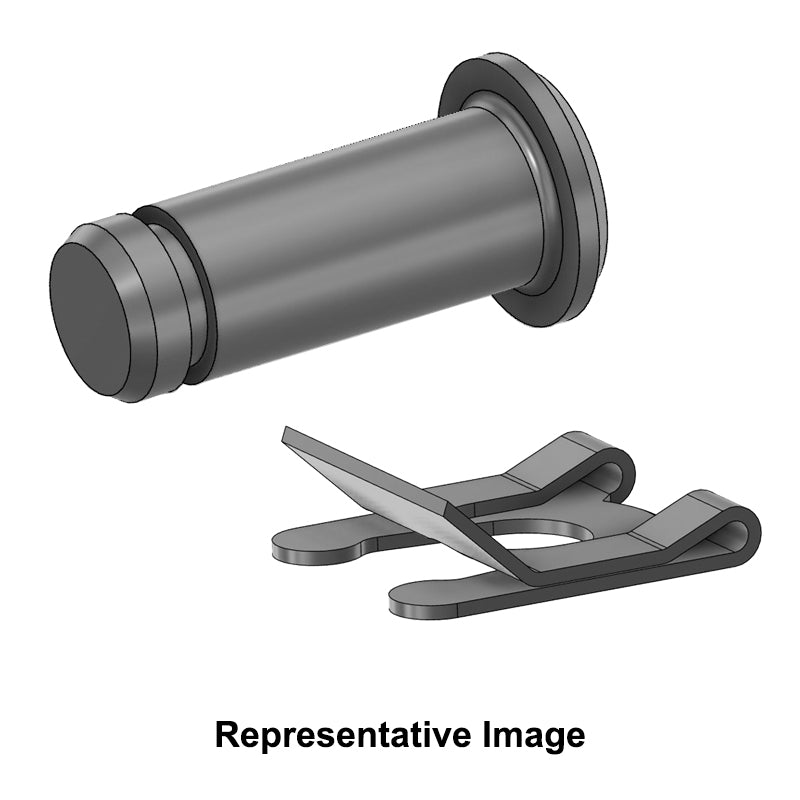

Chiavette PKS4/SL4 Steel Clevis Pin and Retainer 6x10.5mm - Allow 7-10 Days
Chiavette PKS4/SL4 Steel Clevis Pin and Retainer 6x10.5mm - Allow 7-10 Days
Out of stock
Description
Description
Chiavette Steel Clevis Pin with Retainer: This kit includes a grooved steel clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 4mm
- Length:
- 10.5mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKS4+Pin>PKS4</a> |
| Material | Steel |
| d1 | 4mm |
| D | 6mm |
| k | 1mm |
| z | 0.5mm |
| z1 | 0.5mm |
| r | 0.3mm |
| d2 | 3.2mm |
| m | 0.64mm (+0.1mm) |
| l1 | 8.5mm (+0.3mm) |
| l | 10.5mm (+0.3mm) |
| Weight | 0.002kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SL4+Retainer>SL4</a> |
| Material | Spring Steel |
| d1 | 4mm |
| a | 7mm |
| h | 8.5mm |
| h1 | 4mm |
| b | 2.3mm |
| s | 0.3mm |
| d2 | 3.2mm |
| m | 0.64mm (+0.1mm) |
| n | 2mm (+0.30mm) |
| z1 | 0.5mm |
| Max axial Load | 1 kN |
| Weight | 0.019kg |
