SKU: PKS14+SL14

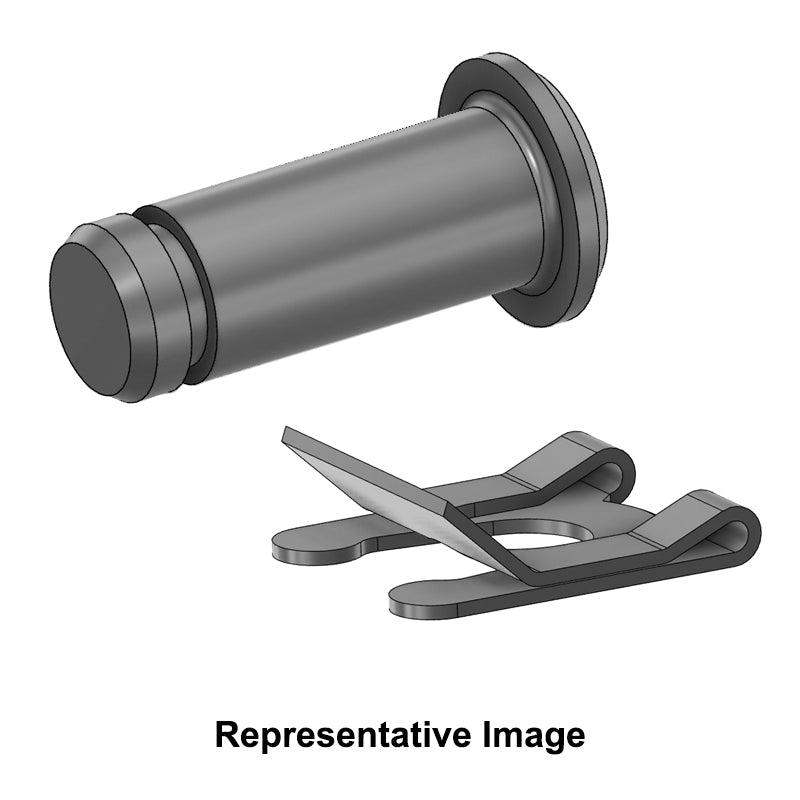

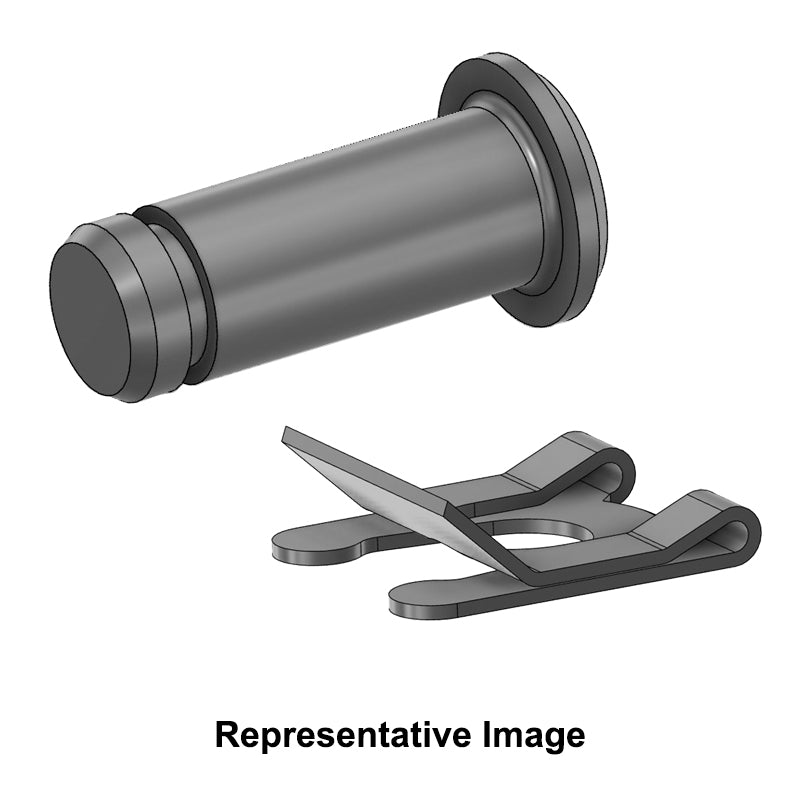

Chiavette PKS14/SL14 Steel Clevis Pin and Retainer 19x33mm - Allow 7-10 Days
Chiavette PKS14/SL14 Steel Clevis Pin and Retainer 19x33mm - Allow 7-10 Days
Out of stock
Description
Description
Chiavette Steel Clevis Pin with Retainer: This kit includes a grooved steel clevis pin and a matching spring steel retaining clip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included retainer that fits within the groove of the pin on one end.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 14mm
- Length:
- 33mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PKS14+Pin>PKS14</a> |
| Material | Steel |
| d1 | 14mm |
| D | 19mm |
| k | 3mm |
| z | 1.5mm |
| z1 | 1.5mm |
| r | 1mm |
| d2 | 10mm |
| m | 1.25mm (+0.1mm) |
| l1 | 27.5mm (+0.3mm) |
| l | 33mm (+0.3mm) |
| Weight | 0.048kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=SL14+Retainer>SL14</a> |
| Material | Spring Steel |
| d1 | 14mm |
| a | 25mm |
| h | 30mm |
| h1 | 13.5mm |
| b | 6mm |
| s | 0.6mm |
| d2 | 10mm |
| m | 1.25mm (+0.1mm) |
| n | 5.5mm (+0.30mm) |
| z1 | 1.5mm |
| Max axial Load | 11.32 kN |
| Weight | 0.474kg |
