SKU: PI12+D1400-012

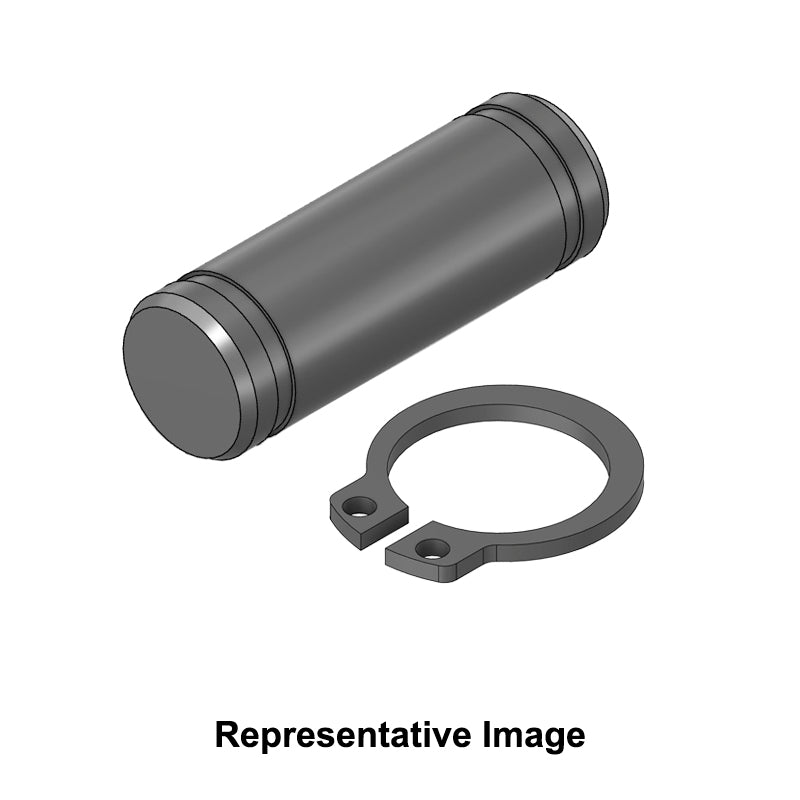

Chiavette PI12 Steel Clevis Pin and Circlip 12x30mm - Allow 7-10 Days
Chiavette PI12 Steel Clevis Pin and Circlip 12x30mm - Allow 7-10 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Clevis Pin with Circlip: This kit includes a clevis pin and a matching circlip to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits between the forks of a clevis and is securely held in position with the included circlip that fits within the groove of the pin on one end. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 12mm
- Length:
- 24.5mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PI12+Pin>PI12</a> |
| d1 | 12mm |
| l | 30mm (+0.5mm) |
| d2 | 11.5mm |
| l1 | 24.5mm (+0.2mm) |
| z | 1mm |
| m | 1.1mm |
| Weight | 0.026kg |
| --- | Circlip |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=D1400-012+Circlip>D1400-012</a> |
| Shaft Size | 12mm |
| Circlip Thickness s | 1mm |
| Thickness Tol. | -0.06mm |
| Unstressed diameter d3 | 11mm |
| Unstressed diameter tol | +0.10/-0.36mm |
| Lug a | 3.3mm |
| Beam b | 1.8mm |
| d5 | 1.7mm |
| Groove Diameter | 11.5mm |
| Groove Tolerance | -0.11mm |
| Minimum groove width | 1.1mm |
| Groove depth | 0.25mm |
| Weight | 0.0005kg |
