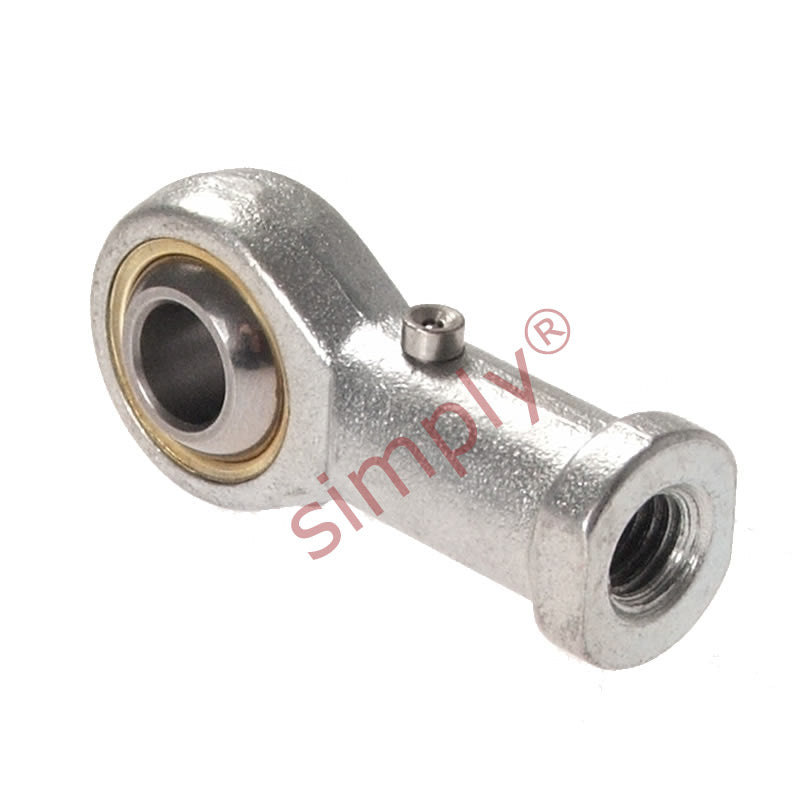

Budget PHS5L Left Hand Steel / Bronze Lined Plain Female Rod End 5mm Bore M5x0.8 Thread

Name: Budget PHS5L Left Hand Steel / Bronze Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
Brand: Gen
SKU: PHS5L.EU
Price: 4.95 EUR
Availability: InStock

€4,95 ex VAT

Sale Sold out

Equivalent to: SILKAC5M FBL-M05

In stock

Price Break

10+ €3,75

19+ €3,54

29+ €3,49

39+ €3,45

49+ €3,41

74+ €3,37

99+ €3,16

199+ €3,11

249+ €3,07

499+ €3,03

999+ €2,95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M5x0.8
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 5mm
Material:: Bronze Lined

Technical

d	5mm
B	8mm
r1	0.3mm
C1	6mm
d1 max	7.7mm
d2	16mm
d3	M5x0.8
h1	27mm
L3	13mm
L4	35mm
L5	4mm
d4	9mm
d5	11mm
S	9mm
Ball diameter	7/16 inch
Dynamic load Cr	3.3 kN
Static load Cor	5.8 kN
Max angle α	13
Weight	0.0165 kg
