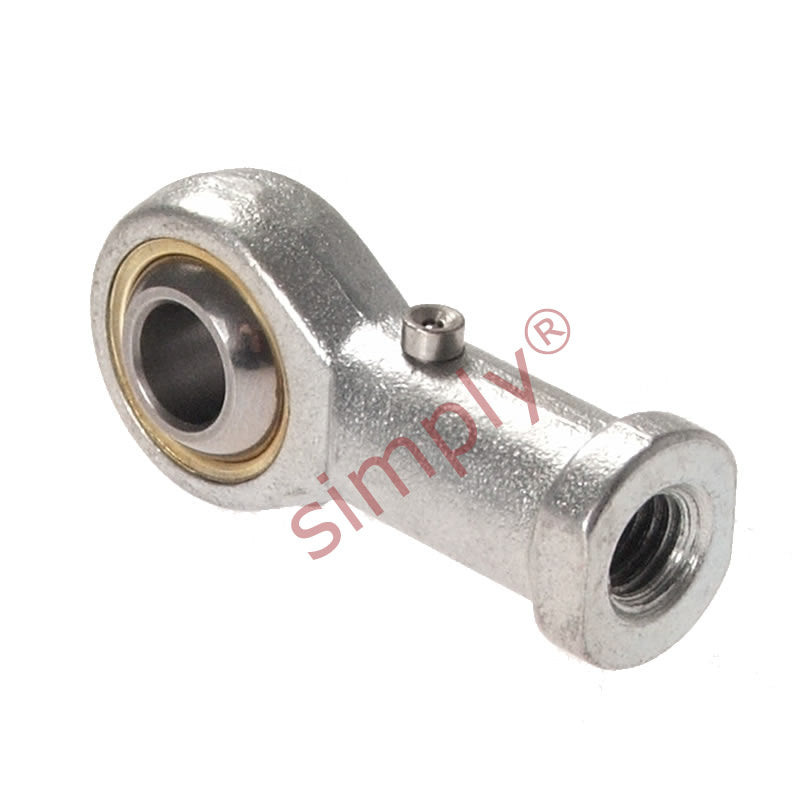

• Budget PHS22 Right Hand Steel / Bronze Lined Plain Female Rod End 22mm Bore M22x1.5 Thread
1 1

SKU: PHS22.EU

Budget PHS22 Right Hand Steel / Bronze Lined Plain Female Rod End 22mm Bore M22x1.5 Thread

Budget PHS22 Right Hand Steel / Bronze Lined Plain Female Rod End 22mm Bore M22x1.5 Thread
€14,95 ex VAT
€14,95 ex VAT
Sale Sold out

Equivalent to: GIKFR22PB SIKAC22M SF22 FB-M22

In stock

Price Break
10+ €11,34
19+ €10,71
29+ €10,58
39+ €10,45
49+ €10,32
74+ €10,20
99+ €9,56
199+ €9,43
249+ €9,30
499+ €9,18
999+ €8,92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M22x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
22mm
Material:
Bronze Lined
Technical
d 22mm
B 28mm
r1 0.6mm
C1 20mm
d1 max 25.8mm
d2 50mm
d3 M22x1.5
h1 84mm
L3 43mm
L4 109mm
L5 12mm
d4 30mm
d5 37mm
S 32mm
Ball diameter 1-1/2 inch
Dynamic load Cr 38.1 kN
Static load Cor 42.6 kN
Max angle α 15
Weight 0.49 kg
