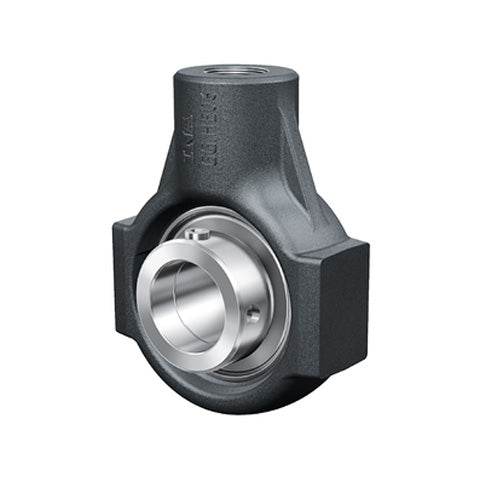

INA PHEY35XL Cast Iron Take Up Unit with Grub Screw Insert 35mm Bore
INA PHEY35XL Cast Iron Take Up Unit with Grub Screw Insert 35mm Bore
Regular price
€60,95
ex VAT
Regular price
Sale price
€60,95
ex VAT
In stock
Price Break
4+
€46,17
9+
€43,58
19+
€43,06
29+
€42,54
39+
€42,02
49+
€41,50
59+
€38,91
69+
€38,39
79+
€37,87
89+
€37,35
99+
€36,32
Quantity
Couldn't load pickup availability
Description
Description
|
INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. These cast iron take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- PHEY
Technical

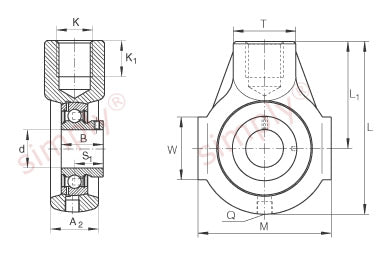

Technical
| d | 35mm |
|---|---|
| L | 122mm |
| M | 90mm |
| A2 | 32mm |
| B | 35mm |
| K | M24 |
| K1 | 24mm |
| L1 | 76mm |
| Q | M6 |
| S1 | 25.5mm |
| T | 40mm |
| W | 49mm |
| Mass | 1.23 kg |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 15300 N |
| Designation of housing | HE07 |
| Designation of bearing | GAY35-XL-NPP-B |
