SKU: PFD30WF-SKF

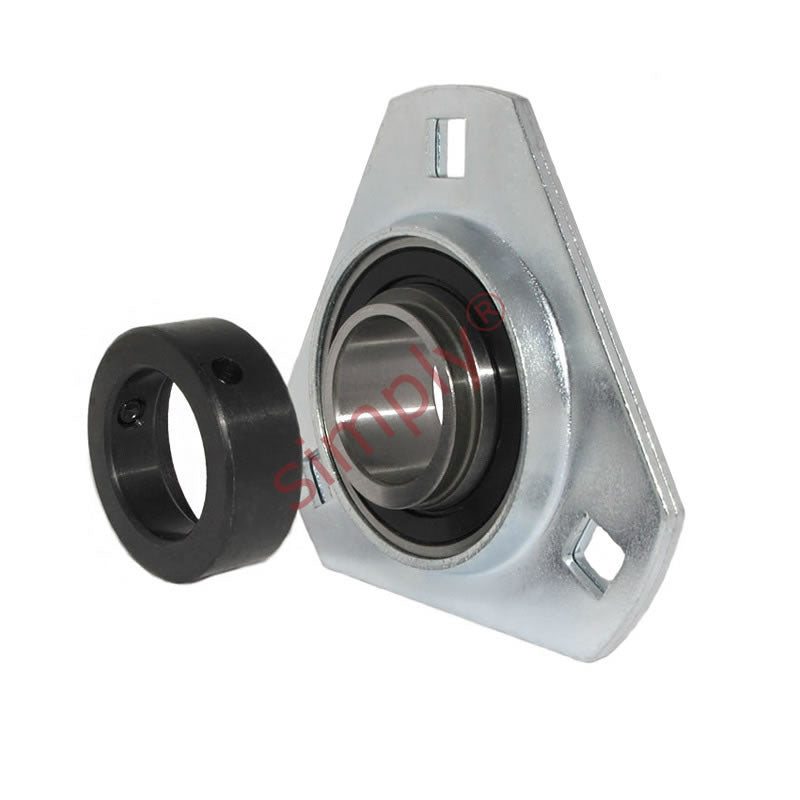

SKF PFD30FM Pressed Steel Triangular Housing with Eccentric Locking Collar 30mm Insert
SKF PFD30FM Pressed Steel Triangular Housing with Eccentric Locking Collar 30mm Insert
Out of stock
Description
Description
| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and an Eccentric Locking Collar: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- PFD
- Bolt Hole Centres:
- 90.5mm
Technical

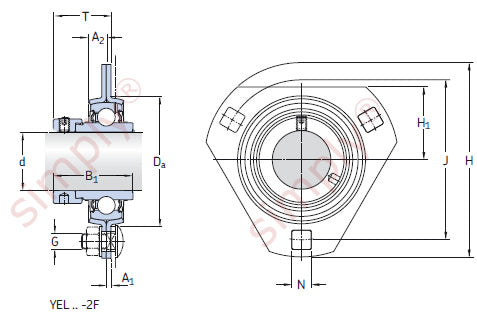

Technical
| d | 30mm |
|---|---|
| A1 | 2.5mm |
| A2 | 9.5mm |
| B1 | 48.4mm |
| Da | 71mm |
| H | 112mm |
| H1/L | 38mm |
| J | 90.5mm |
| N | 10.5mm |
| G | 10mm |
| T | 32.6mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Permissible housing load | 5 kN |
| Weight | 0.54 kg |
