SKU: PF20-00-502-DURB

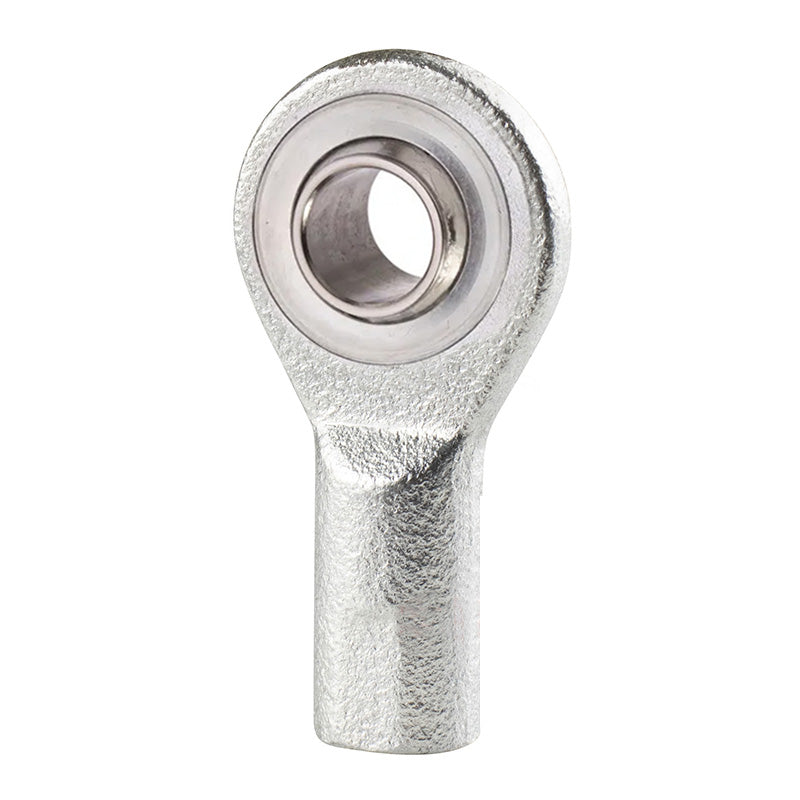

Durbal PF20-00-502 Left Hand Metric Steel Female Rod End M16 Thread
Durbal PF20-00-502 Left Hand Metric Steel Female Rod End M16 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
Technical
Technical
| Thread Direction | -502 (Left) |
|---|---|
| d | 20mm |
| G (Thread) | M16 |
| B | 20.5mm |
| C1 | 15mm |
| h1 | 65mm |
| d1 | 24mm |
| d2 | 48mm |
| d3 | 22mm |
| l3 | 32mm |
| l4 | 89mm |
| l7 | 22mm |
| W | 19mm |
| tilt angle α | 6.5 deg |
| weight | 0.223kg |
| rotational speed limit n max | 850 (min-1) |
| axial factor | 2.34 Y |
| axial factor | 2.45 Y0 |
| basic load rating dyn C | 6.1 kN |
| basic load rating stat Co | 3 kN |
| radial clearance CN | 10-30 µm |
