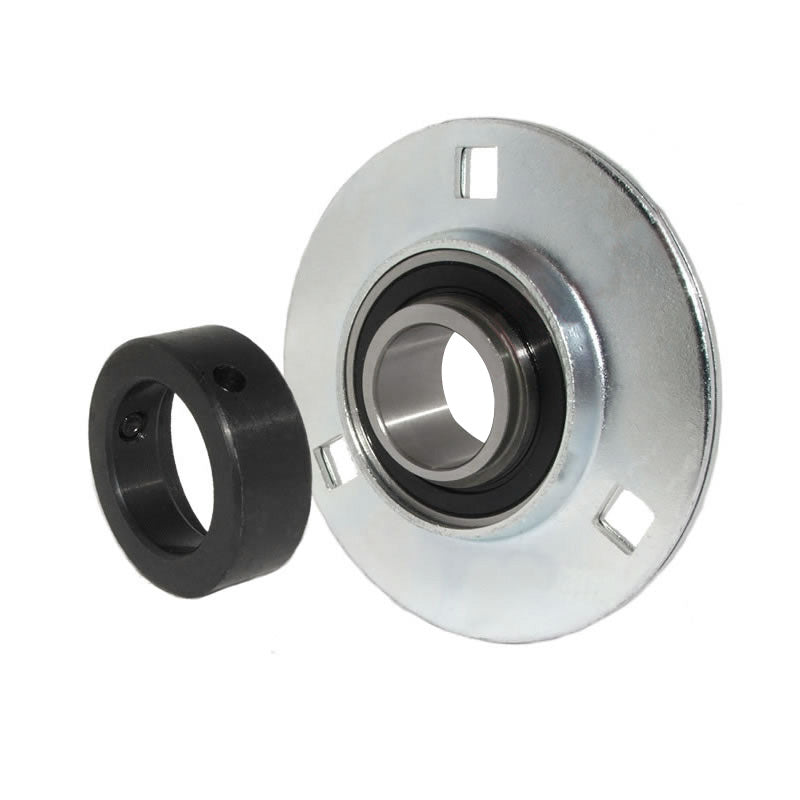

SKF PF15FM Pressed Steel Round Housing with Eccentric Locking Collar 17mm Insert
SKF PF15FM Pressed Steel Round Housing with Eccentric Locking Collar 17mm Insert
Out of stock
Description
Description
| SKF Round Flanged Y-bearing Units with Pressed Steel Housing and an Eccentric Locking Collar: These units are designed for simple applications with limited loads and speeds. These round flanged housings are made of pressed steel and have three or four square holes (depending on the size of the housing) for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Style:
- PF
- Pitch Circle Diameter:
- 63mm
Technical
Technical

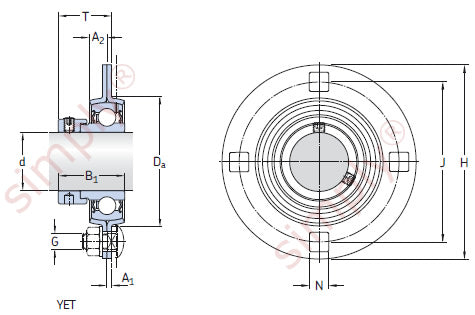

| d | 17mm |
|---|---|
| A1 | 2mm |
| A2 | 7mm |
| B1 | 28.6mm |
| Da | 49mm |
| H | 81mm |
| J | 63mm |
| N | 7.1mm |
| G | 6mm |
| T | 24.1mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Permissible housing load | 2.5 kN |
| Weight | 0.22 kg |
