SKU: PE-212FL-FLEX
FLEXEPULSE 1/2 inch 2SN Hydraulic Hose - Per Metre - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description

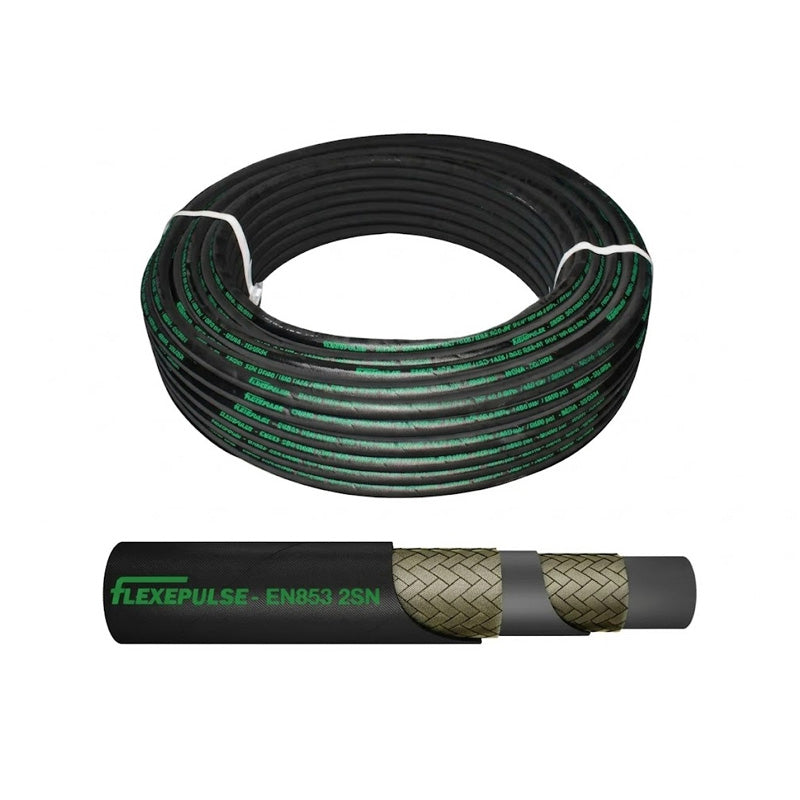

FLEXEPULSE 2SN Hydraulic Hose: This is a durable hose designed for medium to high-pressure hydraulic applications. Featuring a braided 2-wire construction with maximum-strength steel wire braids, it meets SAE 100 R2S, EN853 2SN, and ISO 1436-2SN standards, and is qualified for 400,000 impulse cycles. The hose's synthetic rubber core is resistant to hydraulic fluids, while its abrasion and ozone-resistant cover ensures long-lasting performance. Suitable for temperatures from -40°C to 100°C (up to 120°C intermittently), it pairs well with PF15/PF12 ferrules.
Benefits: High durability and strength, broad temperature and fluid compatibility, long-term performance
- Brand / Quality:
- FLEXEPULSE - High Quality
- Inside Diameter:
- 1/2 inch
- Outside Diameter:
- 22.2mm
- Max Working Pressure:
- 275 bar / 3988 psi
Technical
| Hose Size | 12 Din |
|---|---|
| Hose Size | 1/2 inch |
| Nominal Inside | 12.8mm |
| Nominal Hose OD | 22.2mm |
| Max. Working Pressure | 275 bar |
| Max. Working Pressure | 3988 psi |
| Min. Burst Pressure | 1100 bar |
| Min. Burst Pressure | 15950 psi |
| Min. Bend Radius | 7.1 inch |
| Min. Bend Radius | 180mm |
| Weight | 0.678 kg |
