INA PCJ17XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 17mm Bore
INA PCJ17XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 17mm Bore
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
4+
€26,71
9+
€25,21
19+
€24,91
29+
€24,61
39+
€24,31
49+
€24,01
59+
€22,51
69+
€22,21
79+
€21,91
89+
€21,61
99+
€21,01
Quantity
Couldn't load pickup availability
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Style:
- PCJ
- Bolt Hole Centres:
- 54mm
Technical
Technical

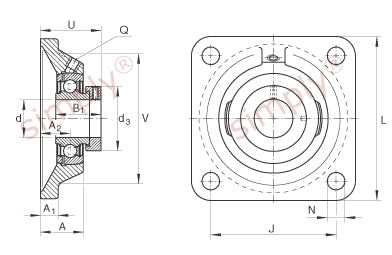

| d | 17mm |
|---|---|
| L | 76mm |
| U | 39.1mm |
| A | 27mm |
| A1 | 9.5mm |
| A2 | 17mm |
| B1 | 28.6mm |
| d3 max | 28.4mm |
| J | 54mm |
| N | 11.5mm |
| Q | M6 |
| V | 58mm |
| Mass | 0.52 kg |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | CJ03 |
| Designation of bearing | GRAE17-XL-NPP-B |
