SKU: PBS-T-24B-9

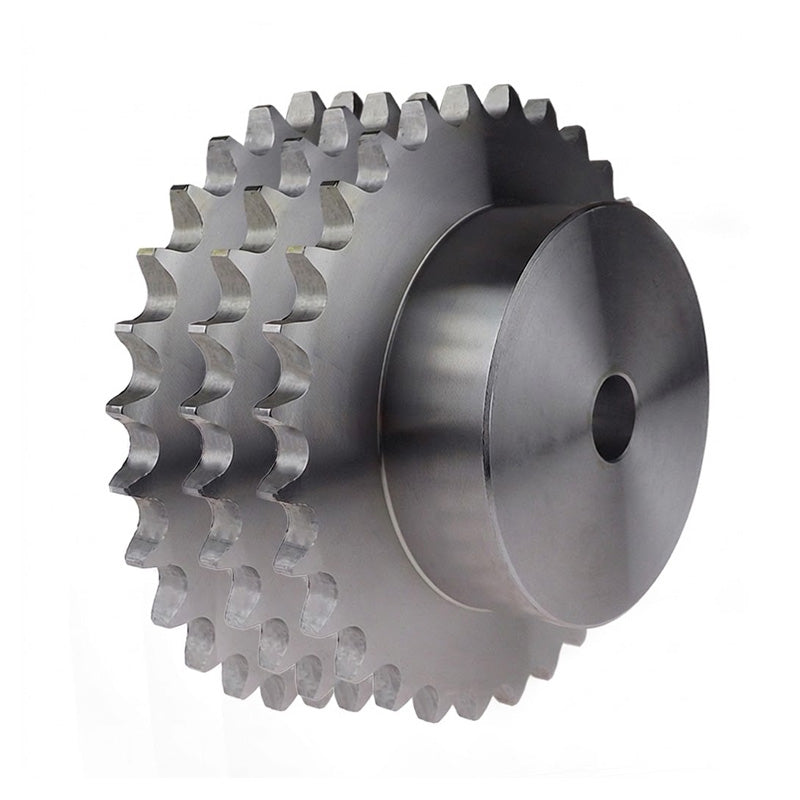

9 Tooth 24B Triplex Pilot Bore Sprocket for 1-1/2 inch Pitch Chain
9 Tooth 24B Triplex Pilot Bore Sprocket for 1-1/2 inch Pitch Chain
Regular price
€110,95
ex VAT
Regular price
Sale price
€110,95
ex VAT
Equivalent to: PT14009 24B3
In stock
Price Break
5+
€83,67
9+
€78,97
19+
€78,03
29+
€77,09
49+
€76,15
74+
€75,21
99+
€70,51
199+
€69,57
249+
€68,63
499+
€67,69
999+
€65,81
Quantity
Couldn't load pickup availability
Description
Description
|
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These Pilot Bore Double Simplex Sprockets allow the end-user to machine the bore to suit their own application. The bore would then require a key way to be broached and threaded holes made through the boss to secure the sprocket to the shaft. The nominal pilot bore is purely to permit tooling to be used to machine the bore to size and should not be taken as a shaft sized finish. Benefits: Universal on the shelf stock - can be machined to suit the application. Durable and Hard wearing. |
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 9
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 38mm |
|---|---|
| Chamfer c | 4mm |
| Tooth Width b1 | 23.6mm |
| Tooth Width B1 | 24.1mm |
| Tooth Width B2 | 72mm |
| Tooth Width B3 | 120.3mm |
| Pitch | 38.1mm |
| Width Between Inner | 25.4mm |
| Roller Diameter | 25.4mm |
| No. of Teeth | 9 |
| Outer Diameter de | 126.4mm |
| Pitch Diameter dp | 111.4mm |
| Hub Diameter dm | 70mm |
| Length Through Bore A | 140mm |
| Stock Bore D1 | 25mm |
