SKU: PBS-DS-16B-19

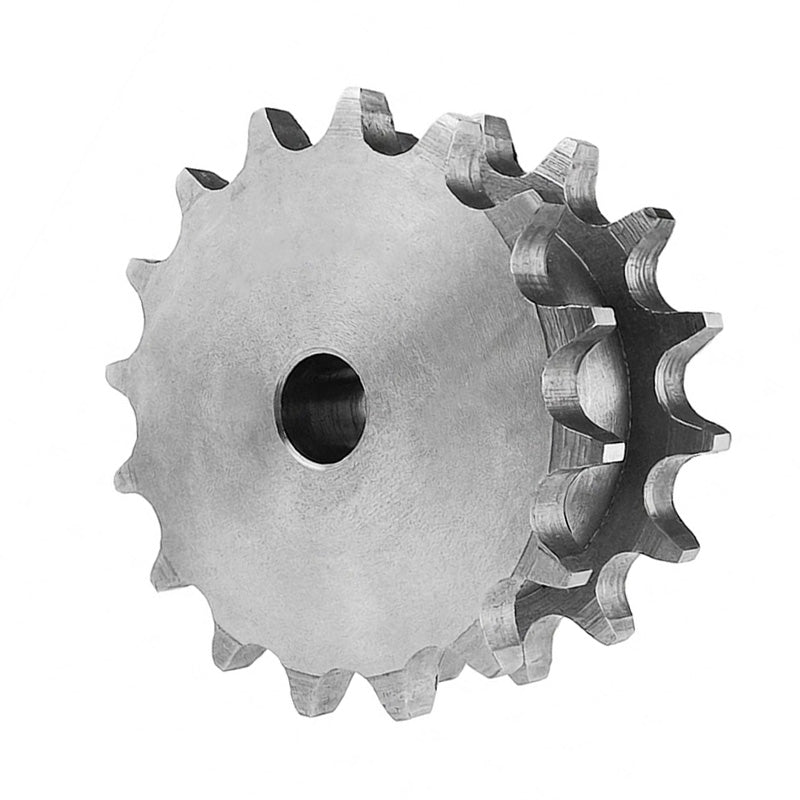

19 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €94,95 ex VAT
- Sale price
- €94,95
- Regular price
-
Not in stock
Quantity Price Breaks
5
€84,51
9
€79,76
19
€78,81
29
€77,86
49
€76,91
74
€75,96
99
€71,21
199
€70,26
249
€69,31
499
€68,36
999
€66,47
SKU:
PBS-DS-16B-19
19 Tooth 16B Pilot Bore Double Simplex Sprocket for 1 inch Pitch Chain
- Regular price
- €94,95 ex VAT
- Sale price
- €94,95
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 19 |
| Pitch Diameter dp | = | 154.33mm |
| Outer Diameter de | = | 165.2mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 129mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Stock Bore D1 | = | 25mm |
| Weight | = | 5.18 kg |
