SKU: NX12Z-MB

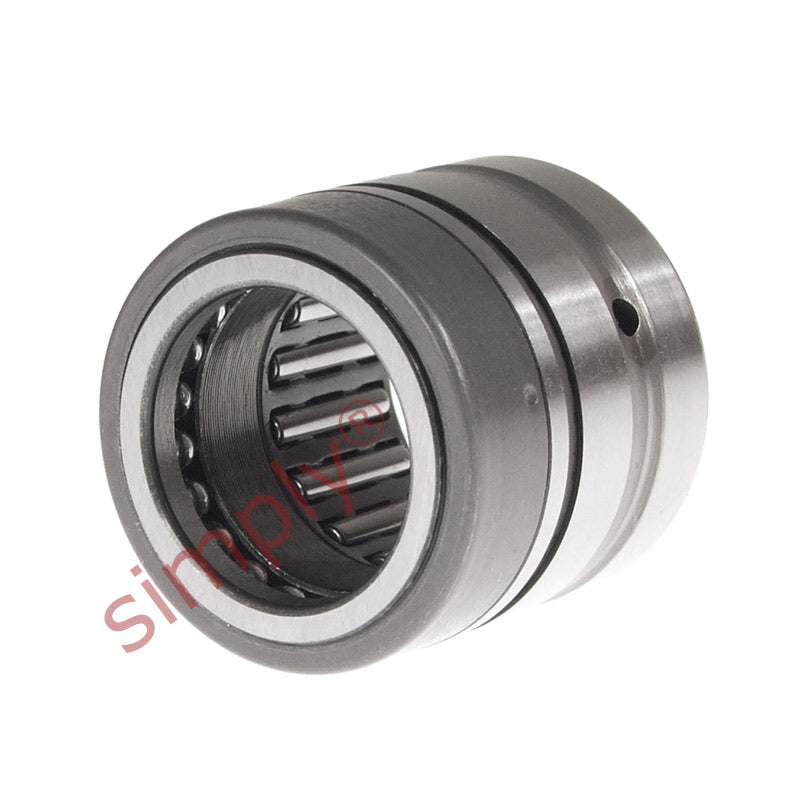

Major Brand NX12Z Needle Roller / Full Complement Thrust Ball Bearing 12x21x18mm

Name: Major Brand NX12Z Needle Roller / Full Complement Thrust Ball Bearing 12x21x18mm
Brand: Major Brand
SKU: NX12Z-MB
Price: 35.95 EUR
Availability: InStock

€35,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €27,07

19+ €25,55

29+ €25,24

39+ €24,94

49+ €24,63

74+ €24,33

99+ €22,81

199+ €22,50

249+ €22,20

499+ €21,90

999+ €21,29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 21mm
Width:: 18mm

Technical

Fw	12mm
D	21mm
C	18mm
Dynamic load	5500 N
Static load	5400 N
Axial dynamic load	5270 N
Axial static load	9650 N
Fatigue load limit radial Pu	610 N
Fatigue load limit axial Pu	355 N
Min load factor A	0.48
Speed in grease	6000 rpm
C1	4.7mm
d	12mm
r1r2 min	0.3mm
da	16.5mm
Da max	19mm
Ca	10mm
ra max	0.3mm
di	8mm
F	12mm
Bi	10mm
Inner Ring	IR8x12x10
Retaining Ring	SW21
Weight	28 g
