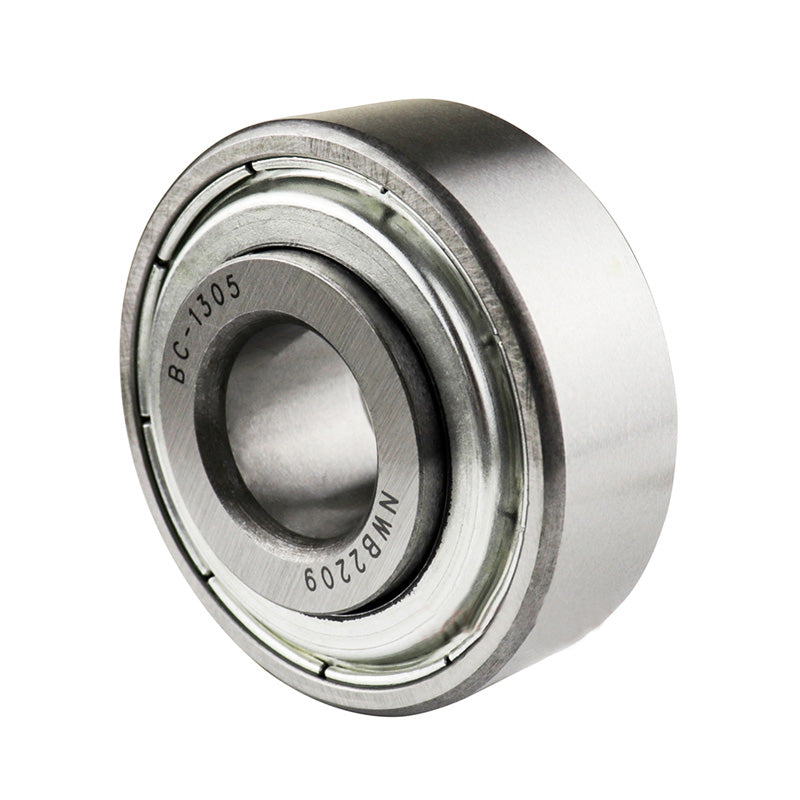

NWB 2209 Gang Disc Harrow Parallel Outer Round Bore Standard Non-Relubricatable Bearing 0.63x1.78x0.735 inch

Gang Disc
Application conditions:

• Utilizes two to three support bearings on a common shaft with several disks spaced with spools
• Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
• A great working depth places the bearings directly into the flow of soil and crop residue

• Directly interchangeable industry standard units
• Static misalignment capability accommodates imprecise mounting surfaces

• Dynamic misalignment capability eliminates internal bearing damage
• Shock load protection due to high grade ductile iron housing
• Exclusive patented sealing system eliminates the need for daily relubrication

Brand / Quality:

NWB - High Quality

Inside Diameter:

16.053mm = 0.632 inch

Outside Diameter:

45.225mm = 1.781 inch

Width:

18.669mm = 0.735 inch
