SKU: NUP230ECM-EU

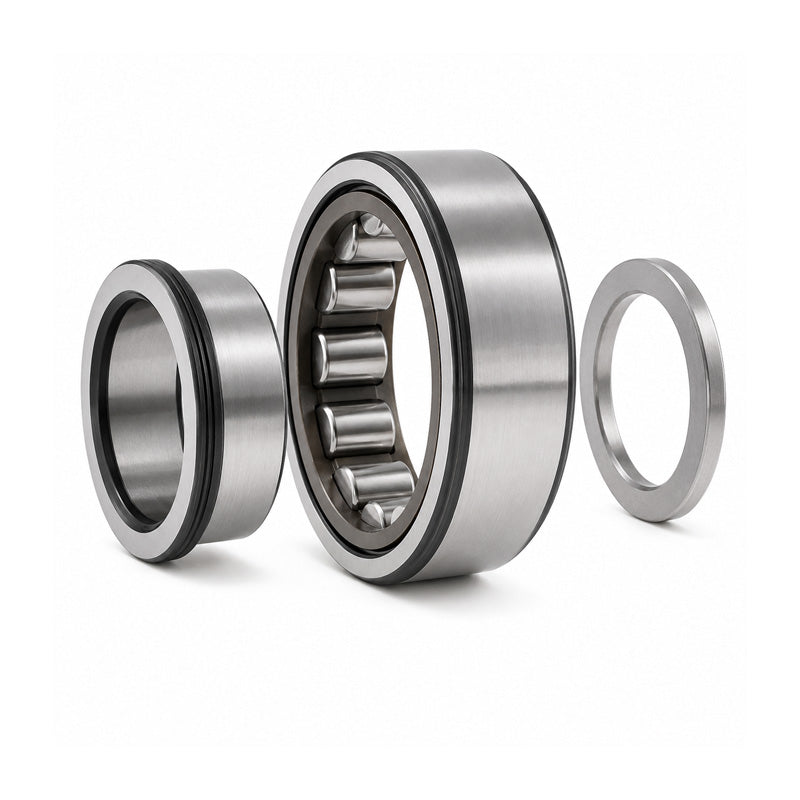

NUP230 Budget Single Row Cylindrical Roller Bearing 150x270x45mm
NUP230 Budget Single Row Cylindrical Roller Bearing 150x270x45mm
Out of stock
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 270mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 270mm |
| B | 45mm |
| Dynamic load C | 510 kN |
| Static load Co | 600 kN |
| Fatigue load limit Pu | 64 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 2800 rpm |
| Weight | 12.2 kg |
| Cage options | ML |
| d1 | 193mm |
| D1 | 234mm |
| F, E | 182mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| da min | 164mm |
| db min | 197mm |
| Da max | 256mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
