SKU: NU2276-E-M1-C3

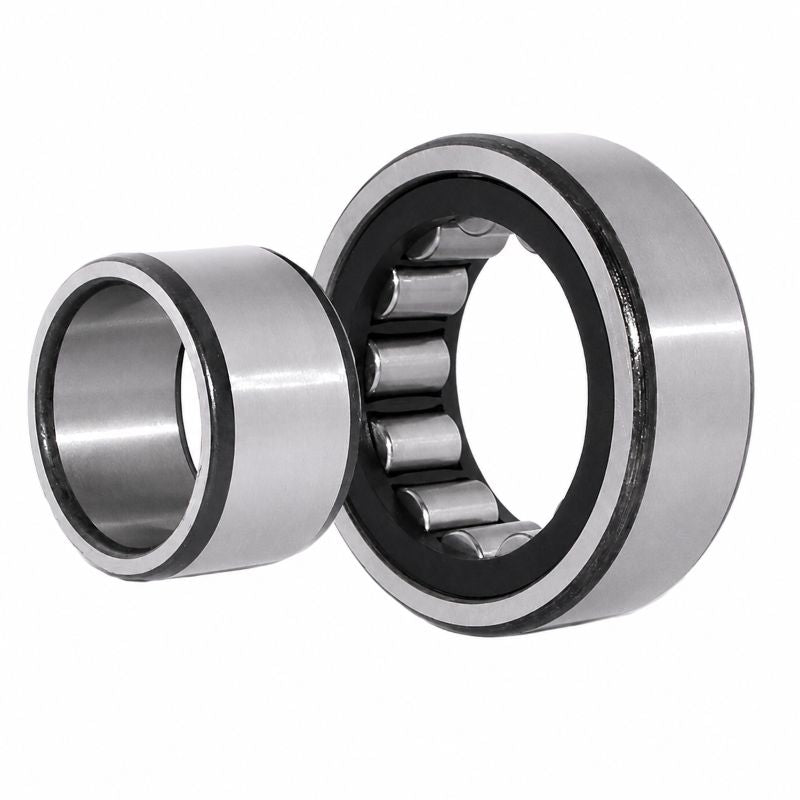

NU2276-E-M1-C3 Cylindrical Roller Bearing with Cage 380x680x175mm
NU2276-E-M1-C3 Cylindrical Roller Bearing with Cage 380x680x175mm
Out of stock
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 380mm
- Outside Diameter:
- 680mm
- Width:
- 175mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 380 |
|---|---|
| D | 680 |
| B | 175 |
| r min | 6 |
| r1 min | 6 |
| s | 13.8 |
| E | 615 |
| F | 451 |
| D1 | 588.8 |
| da min | 406 |
| da max | 446 |
| db min | 456 |
| Da max | 654 |
| ra max | 5 |
| ra1 max | 5 |
| Dynamic load | 4050000 N |
| Static load | 6700000 N |
| Fatigue limit load | 610000 N |
| Limiting speed | 1400 rpm |
| Reference speed | 455 rpm |
| Weight | 288 kg |
