SKU: NP2.1/2.RHP

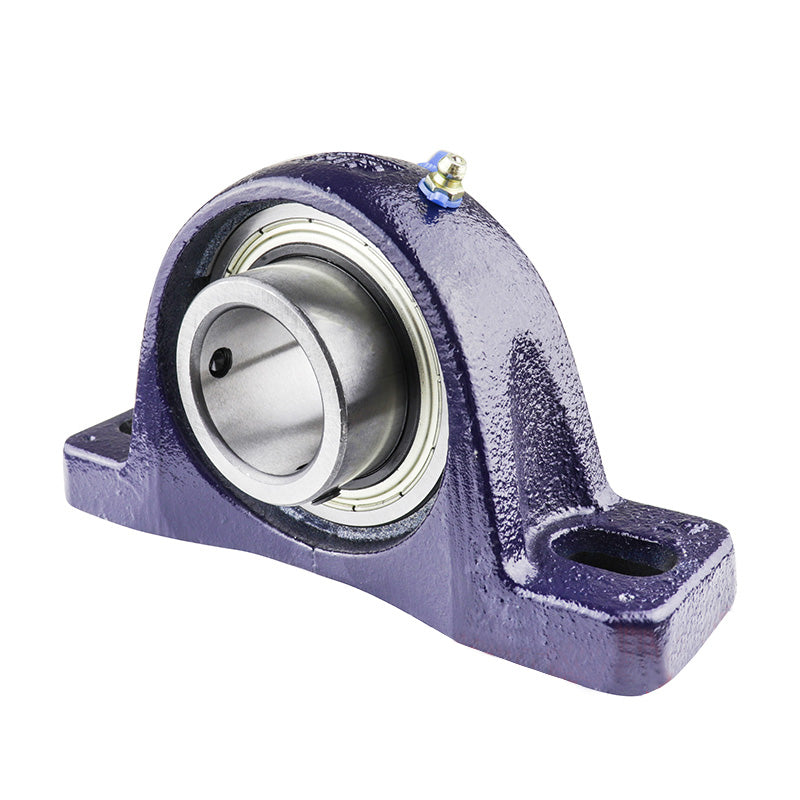

RHP NP2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert

RHP NP2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/2 inch
L 9.5 inch
H 2.752 inch
H1 0.874 inch
H2 5.563 inch
J max 7.563 inch
J min 6.937 inch
G 0.625 inch
A 2.748 inch
A1 1.811 inch
B 2.562 inch
s 1.002 inch
d1 3.244 inch
Dynamic load Cr 57500 N
Static load Cor 40000 N
Rec max speed 2600 rpm
Weight 5.9 kg
Insert <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a>
Casting group 10/65
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
