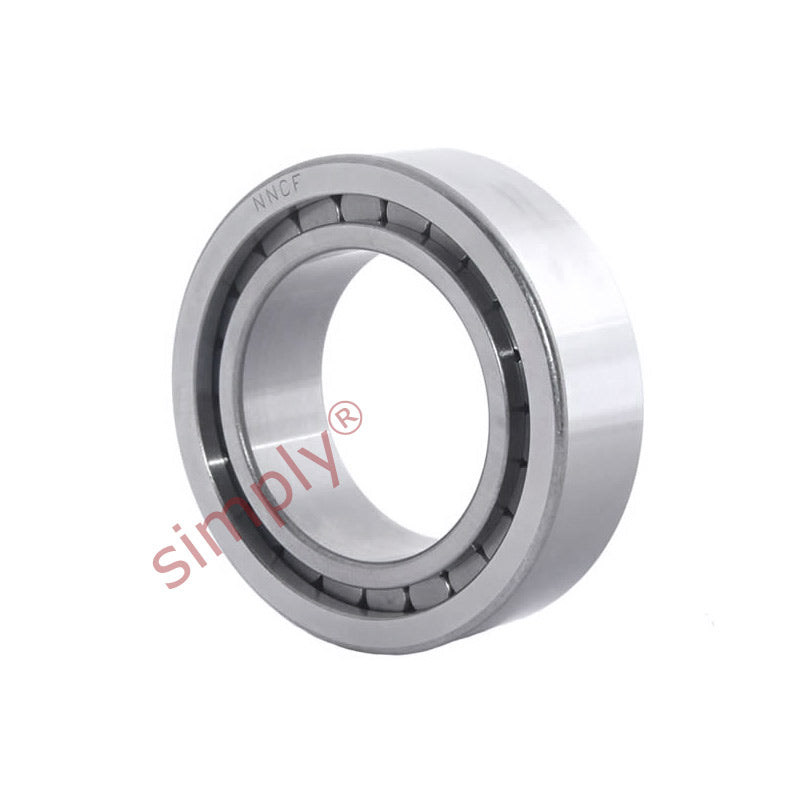

SKF NNCL4934CV Double Row Full Complement Cylindrical Roller Bearing 170x230x60mm
SKF NNCL4934CV Double Row Full Complement Cylindrical Roller Bearing 170x230x60mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 230mm
- Width:
- 60mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 170mm |
|---|---|
| D | 230mm |
| B | 60mm |
| Dynamic load C | 457 Kn |
| Static load Co | 950 Kn |
| Fatigue load limit Pu | 100 Kn |
| Reference speed | 1200 rpm |
| Limiting speed | 1500 rpm |
| Weight | 7.1 kg |
| d1 | 194mm |
| E | 215.08mm |
| b1 | 7mm |
| K | 4mm |
| r1r2 min | 2mm |
| S | 4mm |
| da min | 180mm |
| Da max | 220mm |
| Ra max | 2mm |
