SKU: NNCF5076CV-SKF

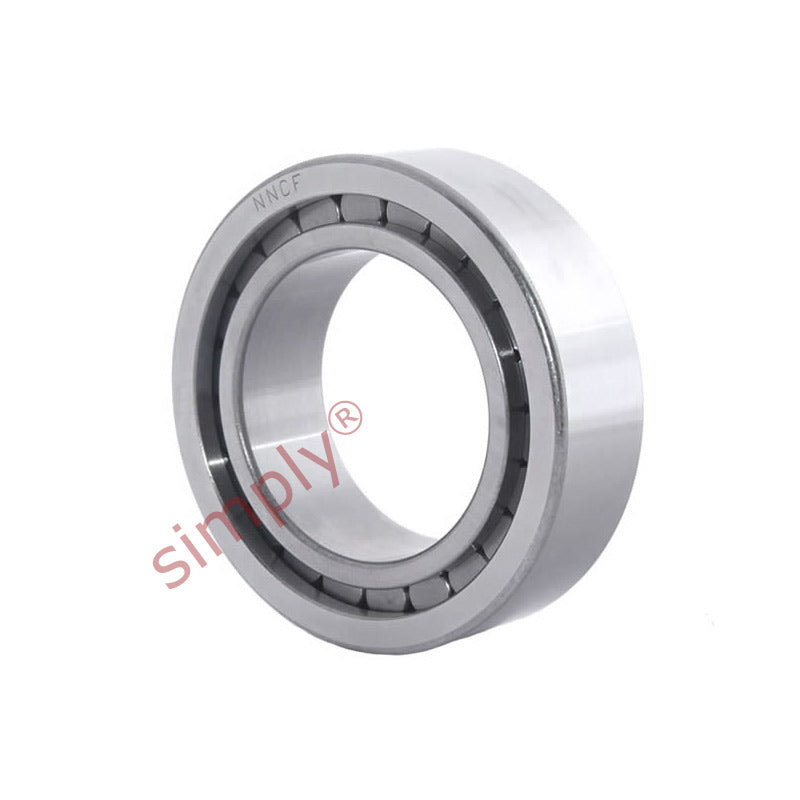

SKF NNCF5076CV Double Row Full Complement Cylindrical Roller Bearing 380x560x243mm

Name: SKF NNCF5076CV Double Row Full Complement Cylindrical Roller Bearing 380x560x243mm
Brand: SKF
SKU: NNCF5076CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 380mm
Outside Diameter:: 560mm
Width:: 243mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	380mm
D	560mm
B	243mm
Dynamic load C	4680 Kn
Static load Co	9150 Kn
Fatigue load limit Pu	735 Kn
Reference speed	480 rpm
Limiting speed	600 rpm
Weight	200 kg
d1	431mm
D1	504mm
E	521mm
b1	9.4mm
K	5mm
r1r2 min	5mm
S	11mm
da min	403mm
das	420mm
Da max	537mm
Ra max	4mm
