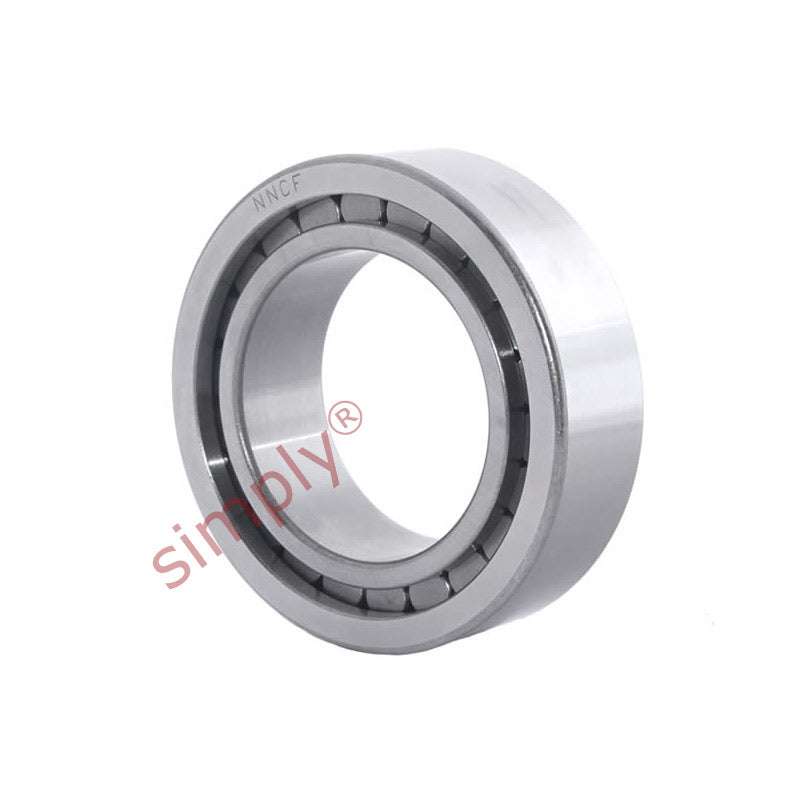

SKF NNCF5032CV Double Row Full Complement Cylindrical Roller Bearing 160x240x109mm

Name: SKF NNCF5032CV Double Row Full Complement Cylindrical Roller Bearing 160x240x109mm
Brand: SKF
SKU: NNCF5032CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 160mm
Outside Diameter:: 240mm
Width:: 109mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	160mm
D	240mm
B	109mm
Dynamic load C	952 Kn
Static load Co	1600 Kn
Fatigue load limit Pu	180 Kn
Reference speed	1200 rpm
Limiting speed	1500 rpm
Weight	16.2 kg
d1	184mm
D1	216mm
E	224.8mm
b1	7mm
K	4mm
r1r2 min	2.1mm
S	6mm
da min	171mm
das	171mm
Da max	229mm
Ra max	2mm
