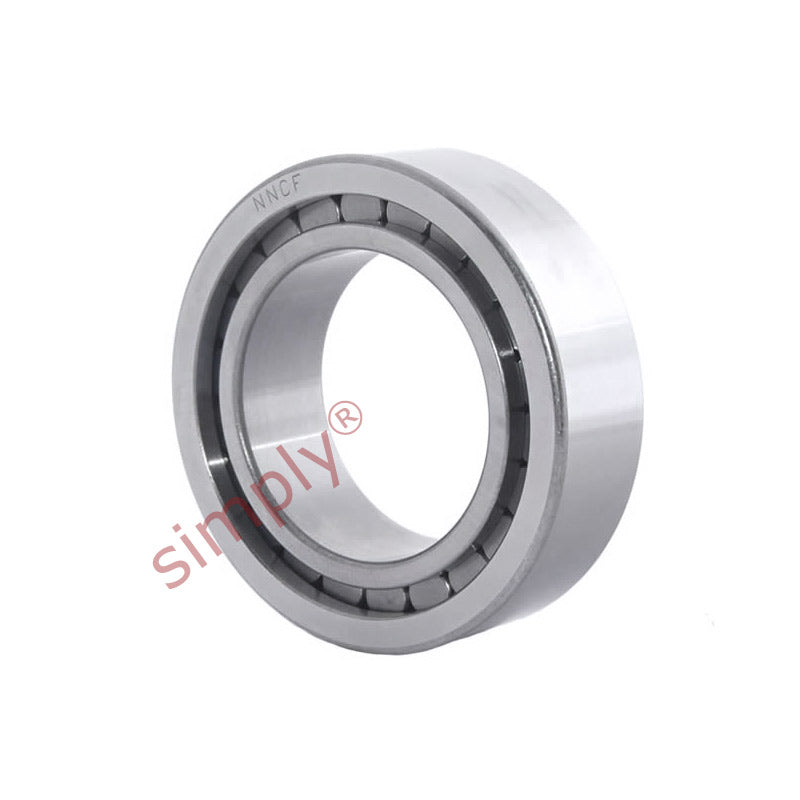

SKF NNCF5024CV Double Row Full Complement Cylindrical Roller Bearing 120x180x80mm

Name: SKF NNCF5024CV Double Row Full Complement Cylindrical Roller Bearing 120x180x80mm
Brand: SKF
SKU: NNCF5024CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 180mm
Width:: 80mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	120mm
D	180mm
B	80mm
Dynamic load C	539 Kn
Static load Co	880 Kn
Fatigue load limit Pu	104 Kn
Reference speed	1700 rpm
Limiting speed	2000 rpm
Weight	6.77 kg
d1	138mm
D1	161mm
E	167.58mm
b1	6mm
K	3.5mm
r1r2 min	2mm
S	5mm
da min	130mm
das	135mm
Da max	170mm
Ra max	2mm
