SKU: NNCF5017CV-SKF

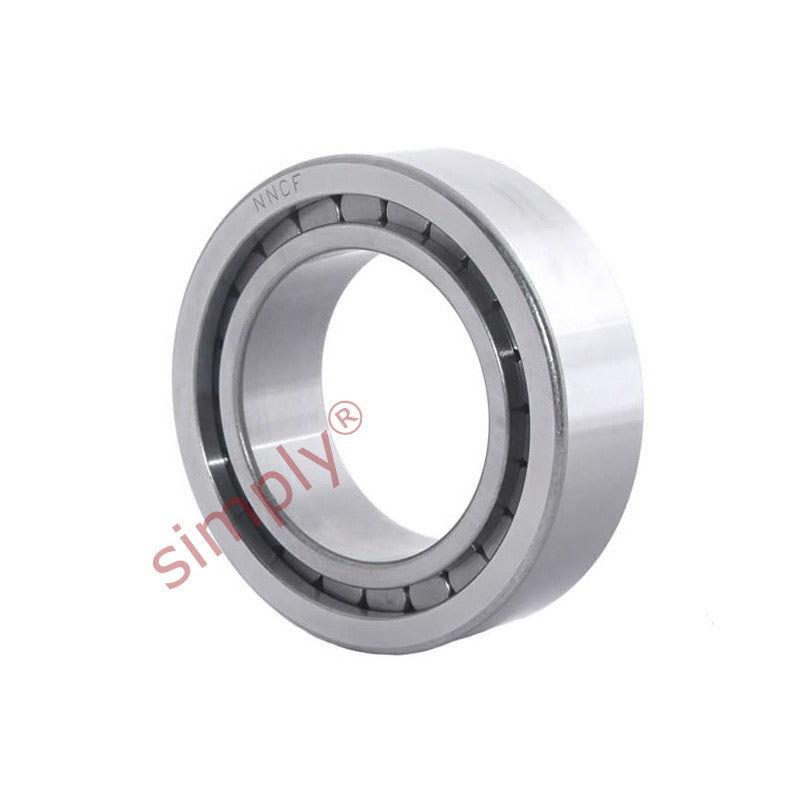

SKF NNCF5017CV Double Row Full Complement Cylindrical Roller Bearing 85x130x60mm
SKF NNCF5017CV Double Row Full Complement Cylindrical Roller Bearing 85x130x60mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 60mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 130mm |
| B | 60mm |
| Dynamic load C | 314 Kn |
| Static load Co | 475 Kn |
| Fatigue load limit Pu | 60 Kn |
| Reference speed | 2400 rpm |
| Limiting speed | 3000 rpm |
| Weight | 2.72 kg |
| d1 | 99mm |
| D1 | 117mm |
| E | 121.44mm |
| b1 | 5mm |
| K | 3.5mm |
| r1r2 min | 1.1mm |
| S | 3.5mm |
| da min | 91mm |
| das | 91mm |
| Da max | 124mm |
| Ra max | 1mm |
