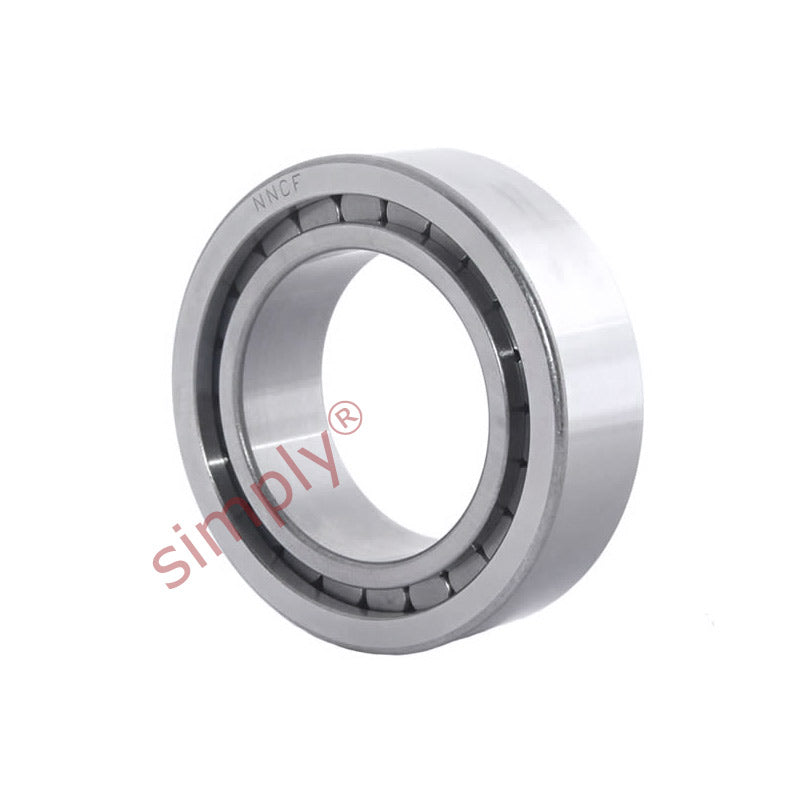

SKF NNCF5007CV Double Row Full Complement Cylindrical Roller Bearing 35x62x36mm

Name: SKF NNCF5007CV Double Row Full Complement Cylindrical Roller Bearing 35x62x36mm
Brand: SKF
SKU: NNCF5007CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 62mm
Width:: 36mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	35mm
D	62mm
B	36mm
Dynamic load C	89.7 Kn
Static load Co	112 Kn
Fatigue load limit Pu	12.9 Kn
Reference speed	5300 rpm
Limiting speed	6700 rpm
Weight	0.46 kg
d1	44.9mm
D1	51.3mm
E	55.52mm
b1	4.5mm
K	3mm
r1r2 min	1mm
S	1.5mm
da min	39.6mm
das	39.6mm
Da max	57.4mm
Ra max	1mm
