SKU: NNCF4926CV-SKF

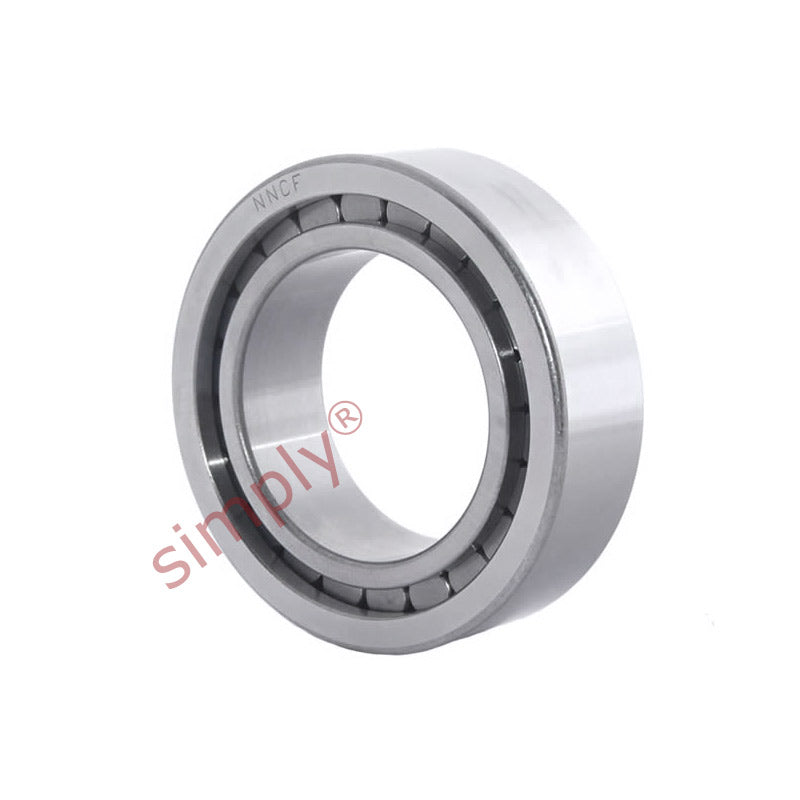

SKF NNCF4926CV Double Row Full Complement Cylindrical Roller Bearing 130x180x50mm
SKF NNCF4926CV Double Row Full Complement Cylindrical Roller Bearing 130x180x50mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 180mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 180mm |
| B | 50mm |
| Dynamic load C | 275 Kn |
| Static load Co | 530 Kn |
| Fatigue load limit Pu | 60 Kn |
| Reference speed | 1600 rpm |
| Limiting speed | 2000 rpm |
| Weight | 3.88 kg |
| d1 | 148mm |
| D1 | 160mm |
| E | 165.4mm |
| b1 | 6mm |
| K | 3.5mm |
| r1r2 min | 1.5mm |
| S | 4mm |
| da min | 137mm |
| das | 146mm |
| Da max | 173mm |
| Ra max | 1.5mm |
