SKU: NKXR-20Z-MB

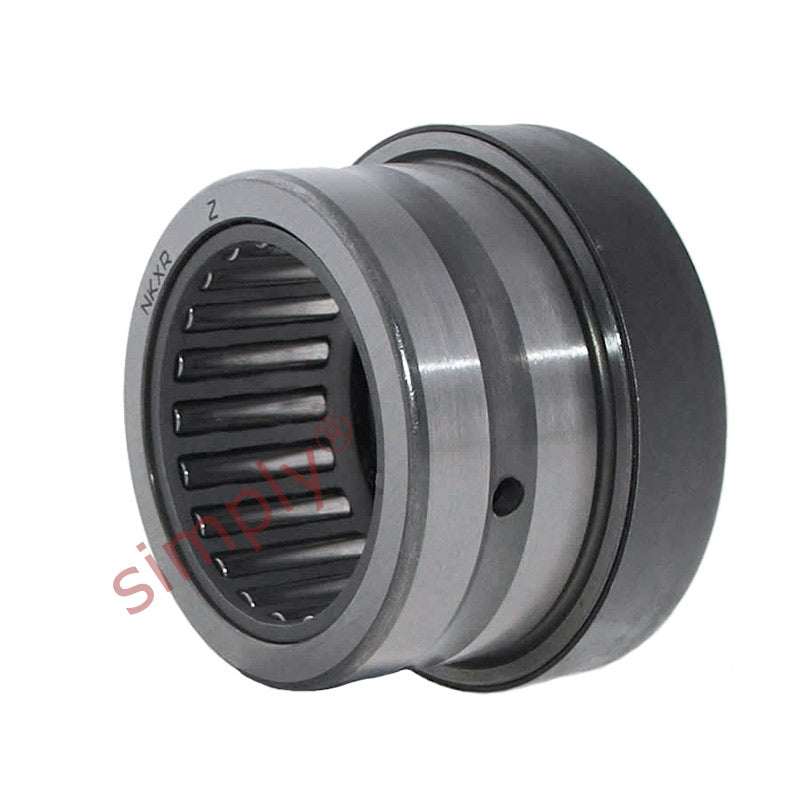

NKXR20Z Major Brand Needle Roller Thrust Bearing with Cover 20x30x30mm
NKXR20Z Major Brand Needle Roller Thrust Bearing with Cover 20x30x30mm
Regular price
€81,95
ex VAT
Regular price
Sale price
€81,95
ex VAT
In stock
Price Break
10+
€62,10
19+
€58,61
29+
€57,92
39+
€57,22
49+
€56,52
74+
€55,82
99+
€52,33
199+
€51,64
249+
€50,94
499+
€50,24
999+
€48,84
Quantity
Couldn't load pickup availability
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: These bearings deliver exceptional performance, durability, and precision for demanding industrial applications. Designed to handle both radial and axial loads simultaneously, these high-quality bearings ensure smooth operation, reduced friction, and long service life even under heavy-duty conditions. Ideal for use in machinery, automotive systems, and various equipment requiring accurate alignment and load distribution. Benefits: High thrust loading, easily mounted, high quality materials |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shielded

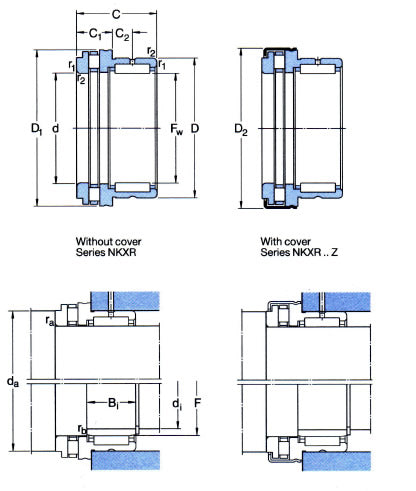

Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20mm |
| D2 | 36.2mm |
| r1r2 min | 0.3mm |
| da | 30.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 17mm |
| F | 20mm |
| B1 | 20mm |
| Inner ring | IR17x20x20 |
| Weight | 84 g |
